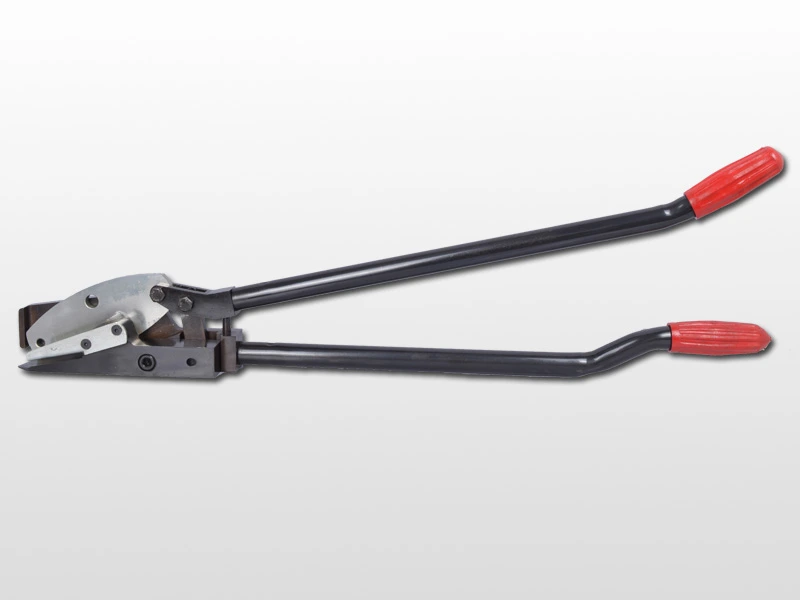

Manual Steel Strap Cutter
Model No.: SC-200
Heavy Duty Steel Strap Cutter Tool | 50.8 mm x 1.65 mm thick strap Industrial Metal Banding Cutter | High Capacity Manual Strapping Cutter | Professional Steel Band Cutting Tool for Thick & Wide Straps.
Description
Take on the toughest industrial cutting tasks with this heavy duty manual steel strap cutter, designed for extra wide and thick steel banding straps. Built for maximum strength and durability, this tool is ideal for high-load applications in demanding environments.
Download User Manual
Features:
- Heavy Duty Steel Strap Cutter.
- Unique Design.
- Easy to operate & maintain.
- Less cutting pressure required.
Special Features:
- Top cutter Blade is elliptical and manufactured from high grade tool steel and hardened to 58/60 HRc. It has 4 cutting edges. Bottom cutter Blade manufactured from Rolled medium carbon steel and hard faced with cobalt base alloy that’s why taper edge doesn`t break and has longer life.
Specification:
- Strap Thickness : Up to 1.65 mm./ 0.065″
- Strap Width : Up to 50.8 mm / 2″
- Grade : Regular Duty or High Tensile.
- Weight : 4.4 kg / 9.7 lb. (approx.)
- Dimension (L × W × H) : 724 mm × 50.8 mm × 229 mm / 28.50″ × 2″ × 9.01″.

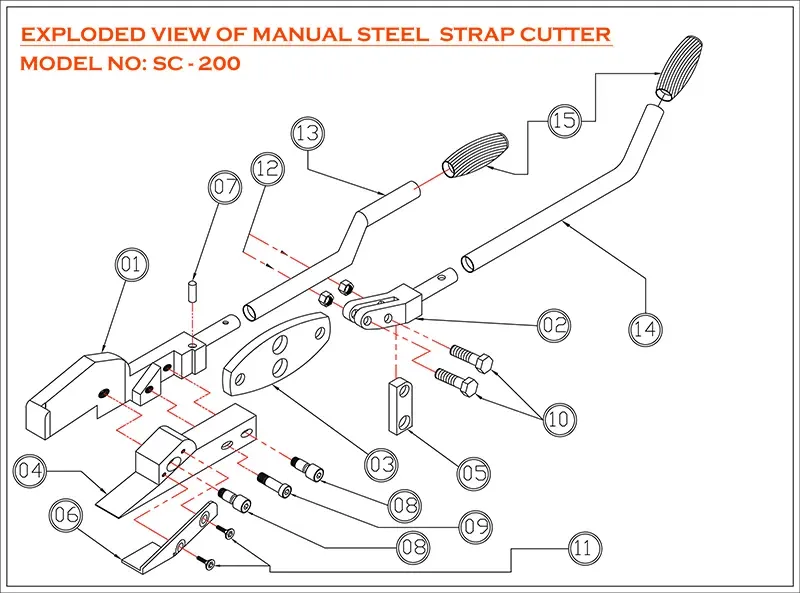

| INDEX | PART NUMBER | PART NAME | QUANTITY |
|---|---|---|---|
| 1 | MSSC01281A | BOTTOM HANDLE HEAD ASSY. | 1 |
| 2 | MSSC02282A | TOP HANDLE HEAD ASSY. | 1 |
| 3 | MSSC03280F | TOP CUTTER BLADE | 1 |
| 4 | MSSC04280F | BOTTOM CUTTER BLADE | 1 |
| 5 | MSSC05280F | LINK | 1 |
| 6 | MSSC06280F | STRAP GUIDE | 1 |
| 7 | MSSC07280F | REST PIN | 1 |
| 8 | MSSC08280F | SHOULDER SCREW | 2 |
| 9 | MSSC09280F | TIGHTENING BOLT | 1 |
| 10 | MSSC10280F | TOP HANDLE BOLT | 2 |
| 11 | MSSC11280F | STRAP GUIDE SCREW | 2 |
| 12 | MSSC12280F | CASTLE NUT | 2 |
| 13 | OMITTED | OMITTED | OMITTED |
| 14 | OMITTED | OMITTED | OMITTED |
| 15 | MSSC15280F | GRIP | 2 |
OPERATIONAL MANUAL:
- Place one gloved hand on the strap and position yourself so that you are not in the path of the strapping.
- Cut the strap several inches away from your hand. The cut should be made so that the flying strap is too short to reach any part of the body.
- Strapping should be cut squarely, not at an angle to avoid sharp strap edge.
- Immediately dispose of all strapping to avoid accidents and injury.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Wear your safety shoes, gloves, helmet and safety glasses at all times.
- Remove oil or grease from your hands, tools and from the floor and area where you will be working.
- Use proper cutting tool as per type, size of the strap to be cut.
- Keep fingers way from areas that can pinch or cut. These areas are located at the front of the tool.
- Only use equipment recommended for the strap. “SC-150” is recommended only for Up to 1.65 mm thick × Up to 50.8 mm wide strap.
WARNING:
- Improper use may result in blindness, severe laceration, amputation.
