Manual Steel Strap Sealer
Model No.: SMDR-32
Steel Strap Sealer 31.75 mm (1-1/4″) x 0.79 / 0.89 mm thick strap | Manual Double Notch Up Cut Tool | Secure Banding for Cargo, Containers & Heavy Packaging.
Description
This Manual Steel Strap Sealer with Double Notch Up Cut Mechanism is designed for consistent and secure sealing of steel straps in industrial packaging applications. Its reverse-type side-action system creates strong double-notch joints, ensuring better grip and enhanced load stability during transport and storage.
Download User Manual
Features:
- Medium duty manual steel strap sealer.
- Double notch reverse type (up cut) side action.
- Easy to operate & maintain.
- High strength aluminium-alloy handle used.
Specification:
- Strap Thickness : 0.64 mm – 0.89 mm / 0.025″ – 0.035″
- Strap Width : 31.75 mm / 11/4″
- Grade : Regular Duty or High Tensile.
- Joint Efficiency : 75% – 80%.
- Weight : 4.5 kg / 9.92 lb. (approx.)
- Dimensions (L X W X H) : 750 mm × 65 mm × 165 mm / 29.5″ × 2.5″ × 6.5″.

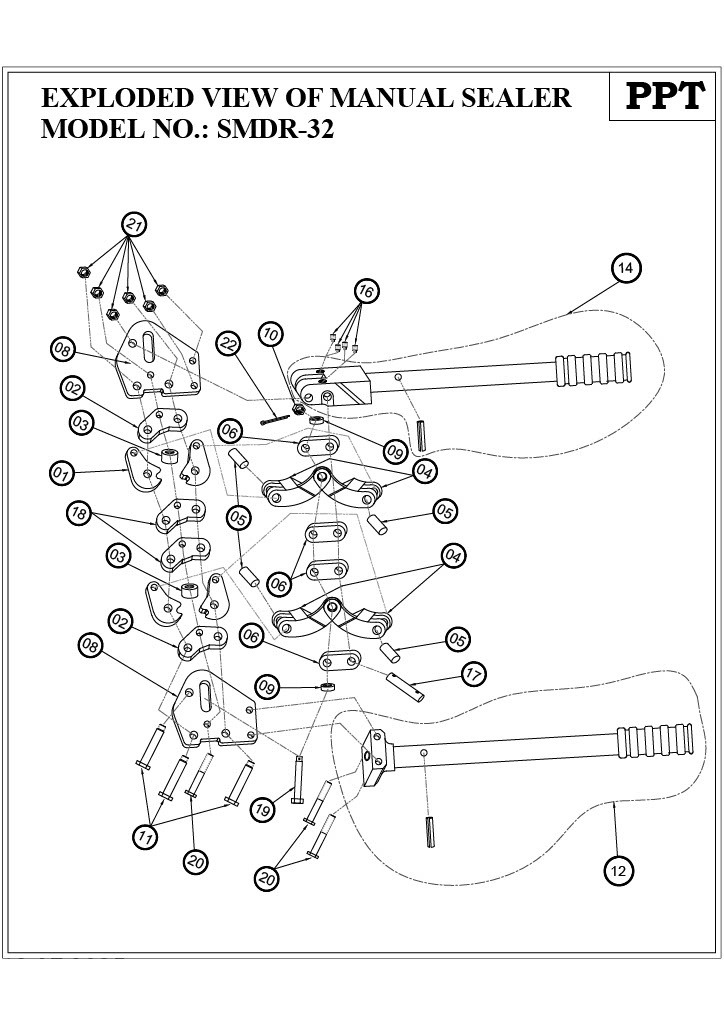

| INDEX | PART NUMBER | PART NAME | QTY |
|---|---|---|---|
| 1 | SMDR010C0F | JAW | 4 |
| 2 | SMDR32002F | NOTCHER PLATE 32- A TYPE | 2 |
| 3 | SMDR32003F | SPACER FOR NOTCHER & SIDE PLATES | 2 |
| 4 | SMDR32004F | LINK BARS | 4 |
| 5 | SMDR050C0F | LINK BAR PIN | 4 |
| 6 | SMDR32006F | LINK PLATE | 4 |
| 7 | SMDR070C0B | HANDLE GRIP | 2 |
| 8 | SMDR32008F | SIDE PLATE | 2 |
| 9 | SMDR090C0F | SLIDER WASHER | 2 |
| 10 | OMITTED | OMITTED | 1 |
| 11 | SMDR110C0F | JAW & UPPER HANDLE BOLT | 3 |
| 12 | OMITTED | OMITTED | 0 |
| 13 | OMITTED | OMITTED | 0 |
| 14 | SMDR160C0B | GRUB SCREWS FOR UPPER HANDLE HEAD | 4 |
| 15 | SMDR170C0F | PIN FOR UPPER HANDLE HEAD | 1 |
| 16 | SMDR32016F | NOTCHER PLATE 32 – B TYPE | 2 |
| 17 | OMITTED | OMITTED | 1 |
| 18 | SMDR200C0F | BOLTS FOR LOWER HANDLE HEAD AND NOTCHER & SIDE PLATE | 3 |
| 19 | SMDR210C0F | NUTS M-8 SIZE | 6 |
| 20 | OMITTED | OMITTED | 0 |
| NOTE: BELOW ITEMS SHOULD BE PROCURED AS ASSEMBLY PART | |||
| ASSY | SMDR190C0A | SLIDER PIN ASSEMBLY | 1 SET |
| SA2 | SMDR12CSA2 | LOWER HANDLE ASSEMBLY | 1 SET |
| SA1 | SMDR12CSA1 | UPPER HANDLE ASSEMBLY | 1 SET |
OPERATIONAL MANUAL:
- Hold the `SMDR-32` vertically, open the jaws & place them across the seal. This seal is very important, if a seal is crimped off-centre it may cause the strap to become loose & snap apart, possibly resulting in serious injury.
- Press the handle of the sealer together until proper sealing is done while keeping the sealer in a vertical position.
- Remove the sealer & inspect the seal to verify it is properly holding the strap. The seal should have four impressions, two on each side. The notches should be centred on the seal. If the impression isn’t properly formed, remove it & repeat with a new seal & strap. Attempting to reseal the previous seal will not ensure a proper sealing & will decrease the break strength.
- Never use the sealer to break the strap. Breaking the strap without the proper cutter may cause it to snap back towards the operator, possibly resulting in serious injury. This action may also damage the sealer and require repair or replacement.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate `SMDR-32`.
- Wear gloves, safety shoe, helmet & goggles before starting operation.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use equipment recommended for the strap. `SMDR-32` is recommended only for 0.79 mm to 0.89 mm thick × 31.75 mm width strap.
