Manual Steel Strap Sealer
Model No.: SSN-114H

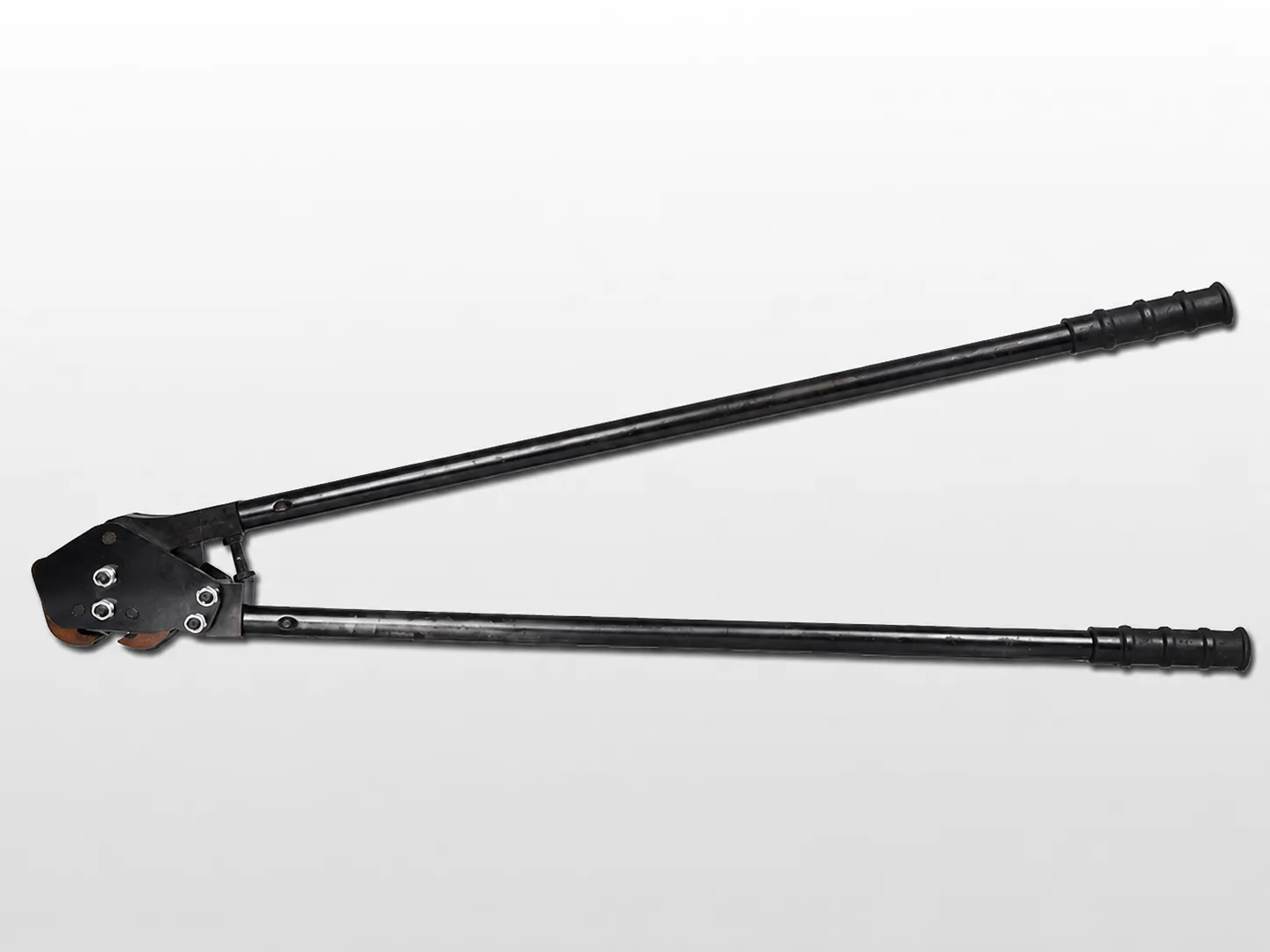

Manual Steel Strapping Sealer Tool | For 32 mm (1.25 Inch) x 1.27 mm thick strap Heavy Duty Banding Tool | Side Action Hand Crimper | Single Notch Seal Down Cut | Industrial Metal Strap Sealing Tool for Packaging.
Description
Ensure strong and secure packaging with this manual steel strapping sealer, designed for professional industrial use. Built for reliability and efficiency, this tool delivers powerful sealing performance for steel straps used in heavy-duty packaging applications, specially for Wagon Unitization and Container Lashing.
Download User Manual
Features:
- Medium duty Manual Steel Strap Sealer
- Single Notch regular type (Down cut) side action
- Easy to operate & maintain
Specification:
- Strap Thickness : 1.10 mm – 1.27 mm / 0.044″ – 0.050″
- Strap Width : 31.75 mm / 1¼”
- Grade : Regular Duty or High Tensile.
- Joint Efficiency : 75% – 80%
- Weight : 4.2 kg / 9.259 lb. (approx.)
- Dimension (L X W X H) : 760 mm × 50 mm × 280 mm / 29.9″ × 2″ × 11″

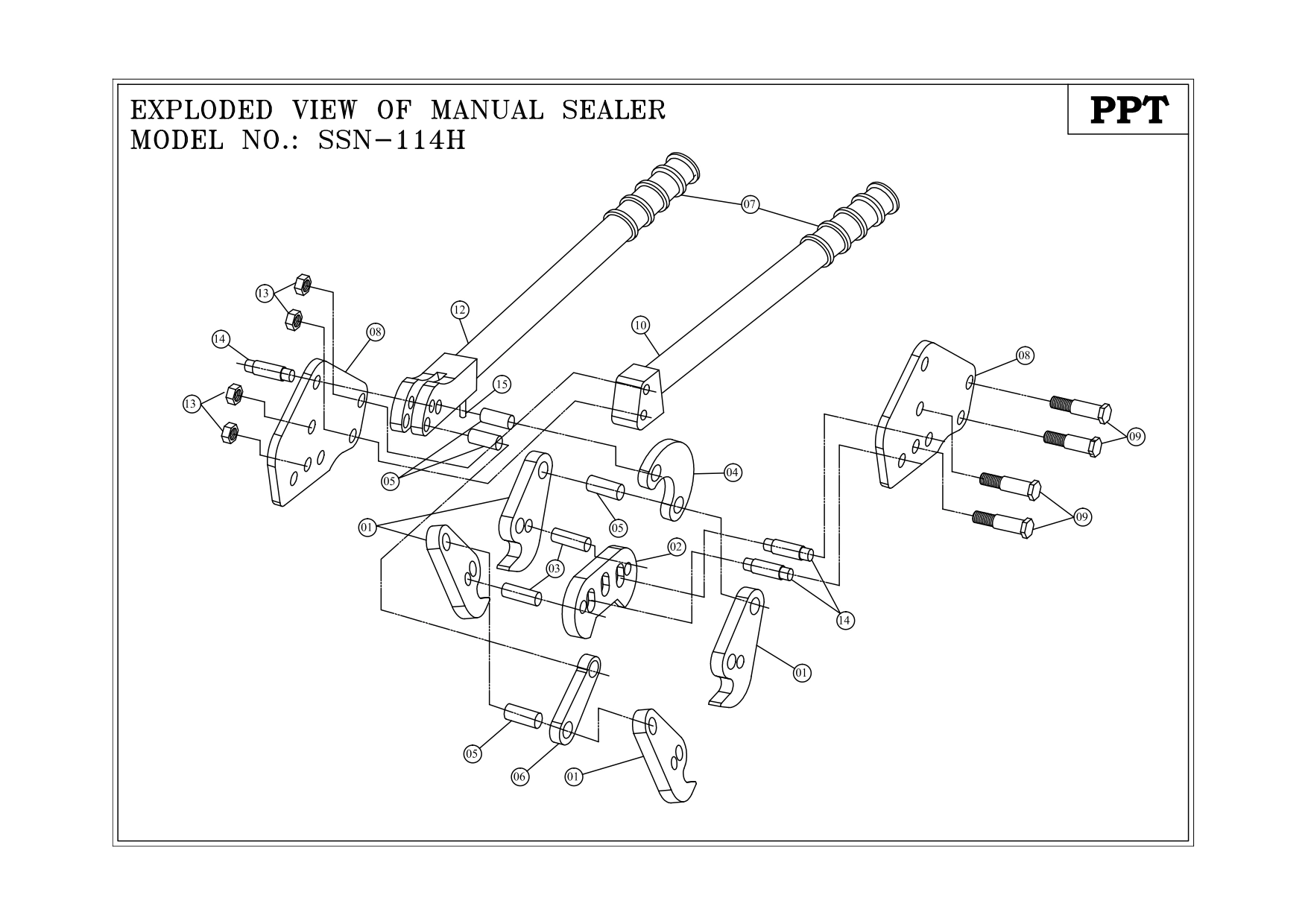

| INDEX | PART NUMBER | PART NAME | QUANTITY |
|---|---|---|---|
| 1 | MSSD01230F | JAW | 4 |
| 2 | MSSD02230F | NOTCHER PLATE | 1 |
| 3 | MSSD03230F | PIN FOR JAW & NOTCHER | 2 |
| 4 | MSSHD4230F | LINK BAR | 1 |
| 5 | MSSHD5230F | LINK BAR PIN | 4 |
| 6 | MSSHD6230F | LINK | 1 |
| 7 | SMDR070C0B | HANDLE GRIP | 2 |
| 8 | MSSHD8230F | SIDE PLATE | 2 |
| 9 | MSSHD9230B | M8 BOLT | 4 |
| 10 | MSSHD1023F | LOWER HANDLE HEAD ASSEMBLY | 1 |
| 11 | OMITTED | OMITTED | OMITTED |
| 12 | MSSHD1223F | UPPER HANDLE HEAD ASSEMBLY | 1 |
| 13 | MSSHD1323B | NYLOCK NUT M8 SIZE | 4 |
| 14 | MSSHD1423F | PIN FOR SIDE PLATE, UPPER HANDLE HEAD, JAW & NOTCHER | 3 |
| 15 | MSSHD1523F | UPPER HANDLE HEAD REST PIN | 1 |
OPERATIONAL MANUAL:
- Hold the `SSN-114H` vertically, open the jaws & place them across the seal. This step is very important, as a seal crimped off-centre may cause the strap to become loose & snap apart, possibly resulting in serious injury or death.
- Press the handle of the sealer together until proper sealing is done while keeping the sealer in a vertical position. Repeat the operation after placing the tool over the seal maintaining a Suitable Space if double notch is required.
- Remove the sealer & inspect the seal to verify it is properly holding the strap. The seal should have two impressions, one on each side. The notches should be centred on the seal. If the seal isn’t properly formed, remove it & repeat with a new seal & strap. Attempting to reseal will not ensure a proper seal & will decrease the break strength.
- Never use the sealer to break the strap. Breaking the strap without the proper cutter may cause it to snap back towards the operator, possibly resulting in serious injury or death. This action may also damage the sealer and require repair or replacement.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate `SSN-114H`.
- Wear gloves, safety shoe, helmet & goggles before starting operation.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use equipment recommended for the strap. `SSN-114H` is recommended only for 1.10 mm to 1.27 mm thick × 31.75 mm width strap.
