Manual Steel Strap Tensioner
Model No.: PRP-1932
PPT Heavy Duty Manual Steel Strapping Tensioner | Industrial rack & pinion steel strapping tool.
Description
Secure your loads with confidence using this heavy-duty manual steel strapping tensioner. Built with a rack & pinion mechanism, it delivers precise and controlled tension for steel straps, ensuring that your pallets, cargo, and packages remain stable during handling, transit, and storage.
Download User Manual
Features:
- Heavy duty Rack & Pinion pusher type steel strap tensioner.
- Light in weight makes it handy.
- Easy to operate & maintain.
- For tensioning of steel strapping on round , irregular shapes and many in compressing objects with narrow surfaces.
- Limited strap take up.
Specification:
- Strap Thickness : 19.05 mm – 31.75 mm / 3/4″ – 1¼″
- Strap Width : 0.64 mm – 0.89 mm / 0.020″ – 0.035″
- Grade : Regular Duty or High Tensile.
- Weight : 2.8 kg / 6.17 lb. (approx.)
- Dimension (L X W X H) : 345 mm × 85 mm × 235 mm / 13.58″ × 3.34″ × 9.45″

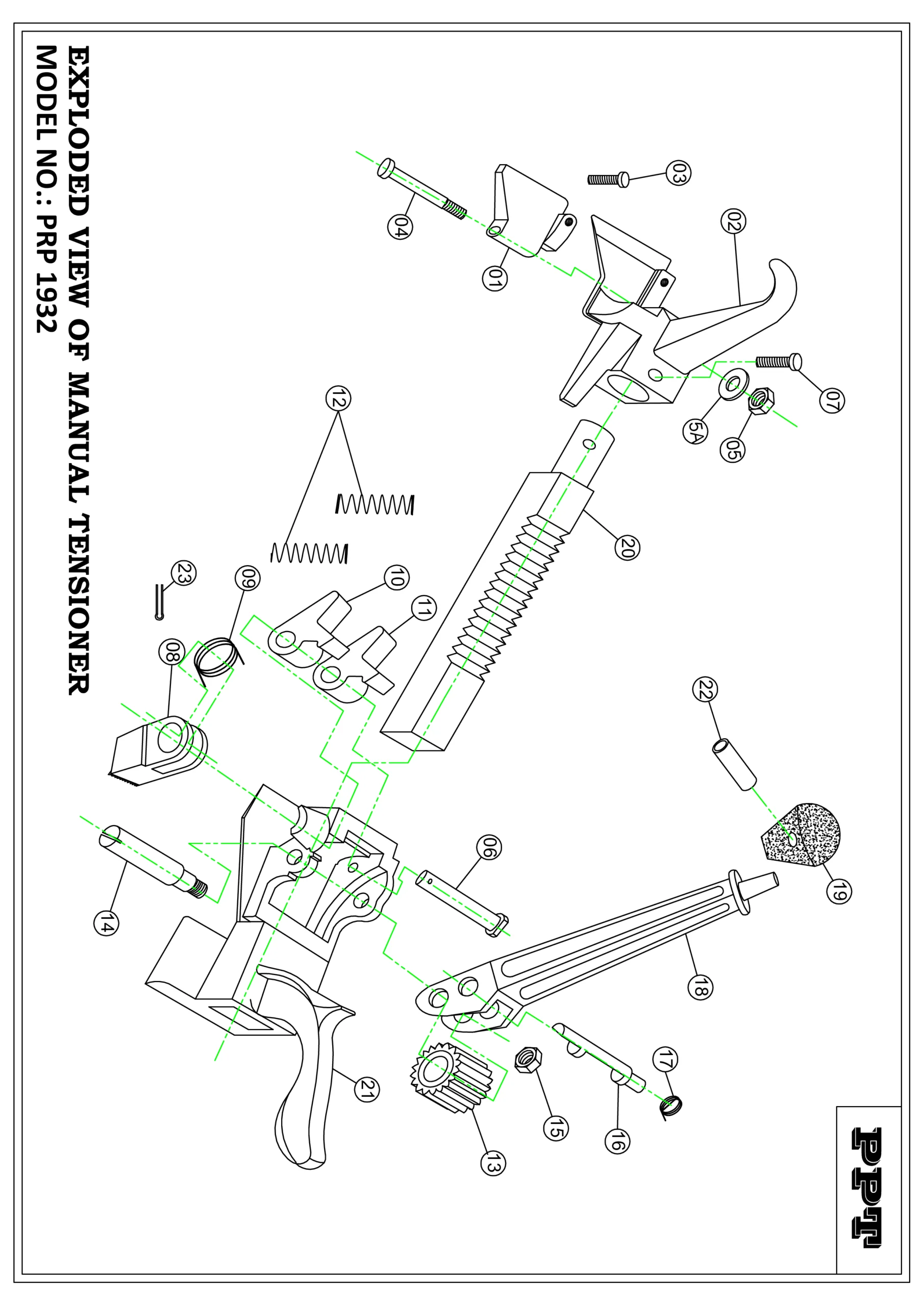

| INDEX | PART NUMBER | PART NAME | QUANTITY |
|---|---|---|---|
| 1 | PRP193201F | Strap Guide | 1 |
| 2 | PRP193202F | Releasing Handle | 1 |
| 3 | PRP193203B | Bolt (M6 × 20) | 1 |
| 4 | PRP193204F | Strap Guide Pin | 1 |
| 5 | PRP193205B | M6 Nut | 1 |
| 5A | PRP19325AF | Washer | 1 |
| 6 | PRP193206F | Gripper Pin | 1 |
| 7 | PRP193207B | M8 × 16 CSK Bolt | 1 |
| 8 | PRP193208F | Gripper | 1 |
| 9 | PRP193209B | Spring for Gripper | 1 |
| 10 | PRP193210F | Ratchet Pawl-01 | 1 |
| 11 | PRP193211F | Ratchet Pawl-02 | 1 |
| 12 | PRP193212B | Ratchet Pawl Spring | 2 |
| 13 | PRP193213F | Pinion | 1 |
| 14 | PRP193214F | Pinion Pin | 1 |
| 15 | PRP193215B | M8 Nut | 1 |
| 16 | PRP193216F | Handle Pawl | 1 |
| 17 | PRP193217B | Spring for Handle Pawl | 1 |
| 18 | PRP193218F | Tensioning Handle | 1 |
| 19 | PRP193219B | Handle Knob | 1 |
| 20 | PRP193220F | Rack | 1 |
| 21 | PRP193221F | Bottom Handle with gear frame | 1 |
| 22 | PRP193222F | Handle Knob Pin | 1 |
| 23 | PRP193223B | Cotter Pin | 1 |
OPERATIONAL MANUAL:
- Pull the strap from the coil & insert the strap into the seal in such a way so that flat surface of the seal remains facing outside the strap.
- Apply the strap on the package & push the bottom strap into the seal & bend the extended strap as Hook against the seal.
- Insert the top strap under the handle gripper & Gripper of the tool.
- Hold the tool above job & move the tensioning handle for tension.
- After complete tensioning operation seal with the heavy duty sealer.
- After sealing tilt, the whole tool over the seal & back again until the strap is broken. Squeeze the tension handle of the down to the base to release from the end of the strap.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate ‘PRP-1932’.
- Wear Gloves, Safety shoe, Helmet & Goggle before starting operation.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use equipment recommended for the strap. `PRP-1932` is recommended only for 0.64 mm to 0.89 mm thick × 19.05 mm – 31.75 mm width.
