Manual Steel Strap Sealer
Model No.: SSR-114H
Manual Steel Strapping Sealer Tool | For 32 mm (1.25 Inch) x 1.27 mm thick strap Heavy Duty Banding Tool | Up Cut Side Action Hand Crimper | Single Notch Reverse Seal | Industrial Steel Strap Sealing Tool.
Description
Enhance your packaging efficiency with this manual steel strapping sealer tool featuring an up cut side action mechanism, engineered for high-performance industrial applications. This tool is ideal for sealing high tensile steel straps used in heavy-duty packaging and shipping operations.
Download User Manual
Features:
- Heavy duty manual steel strap sealer.
- Single notch reverse type (up cut) side action.
- Easy to operate & maintain.
Specification:
- Strap Thickness : 1.10 mm – 1.27 mm / 0.044” – 0.050”.
- Strap Width : 31.75 mm / 1¼″.
- Grade : High Tensile.
- Joint Efficiency : 75% – 80%.
- Weight : 3.5 kg / 7.71 lb. (approx.)
- Dimensions (L X W X H) : 758 mm × 35 mm × 100 mm / 29.8″ × 1.37″ × 3.93″.

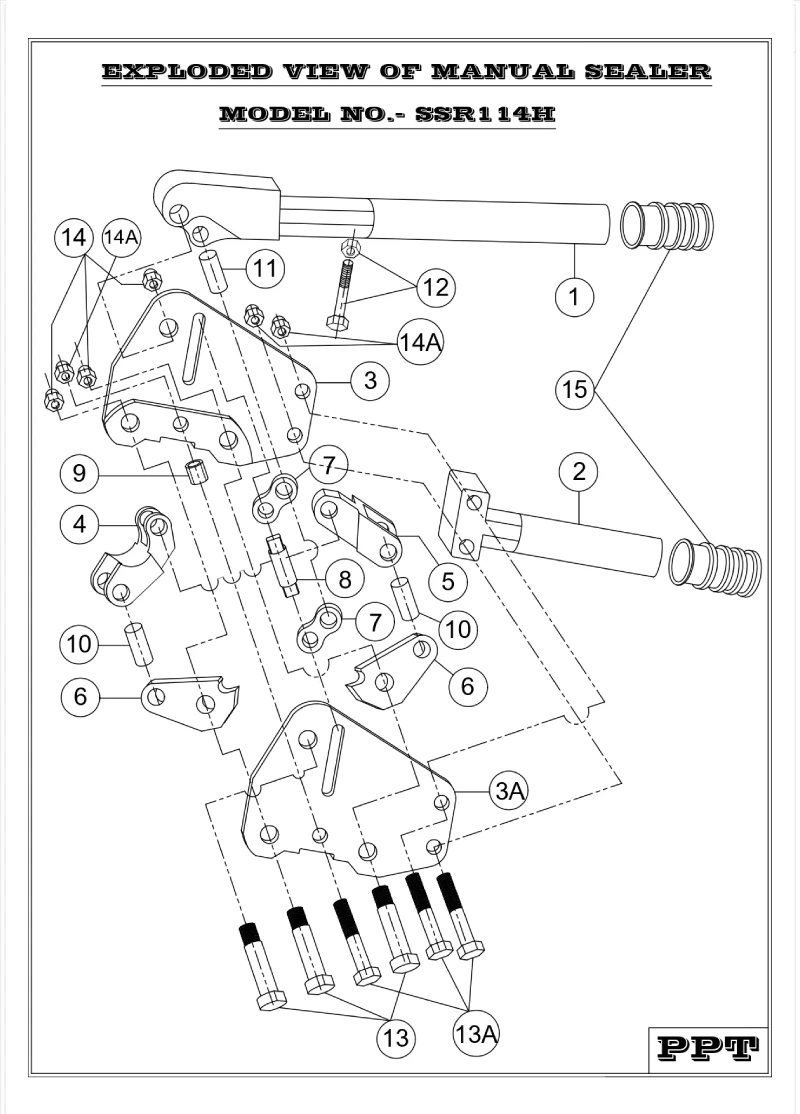

| Index No. | Part Number | Part Name | Quantity |
|---|---|---|---|
| 1 | MSSU1114HA | UPPER HANDLE HEAD WITH PIPE | 1 |
| 2 | MSSU2114HA | LOWER HANDLE HEAD WITH PIPE | 1 |
| 3 | MSSU03114F | SIDE PLTE-R | 1 |
| 3A | MSSU3A114F | SIDE PLTE-L | 1 |
| 4 | MSSU41140F | ROUND LINK BAR | 1 |
| 5 | MSSU51140F | STRAIGHT LINK BAR | 1 |
| 6 | MSSU61140F | JAW | 2 |
| 7 | MSSU71140F | CENTER LINK | 2 |
| 8 | MSSU81140F | CENTER LINK PIN | 1 |
| 9 | MSSU91140F | SPACER | 1 |
| 10 | MSSU10114F | JAW LINK PIN FOR BOTH LINK BAR | 2 |
| 11 | MSSU11114F | UPPER HANDLE LINK PIN FOR CENTER LINK | 1 |
| 12 | MSSU12114B | STOPPER BOLT WITH NUT | 1 |
| 13 | MSSU13114B | BOLT FOR NOTCHER AND UPPER HANDEL HEAD | 3 |
| 13A | MSSU13A14F | BOLT FOR LOWER HANDEL HEAD AND SPACER | 3 |
| 14 | MSSU14114B | NYLOCK NUT FOR NOTCHER AND UPPER HANDEL HEAD | 3 |
| 14A | MSSU14A14B | NYLOCK NUT FOR LOWER HANDEL HEAD AND SPACER | 3 |
| 15 | MSSU15114F | HANDLE GRIPPER | 2 |
| NOTE: BELOW ITEMS SHOULD BE PURCHASE AS ASSEMBLY PART | |||
| 1 & 12 | MSSU1214SA | UPPER HANDLE ASSEMBLY | 1 SET |
OPERATIONAL MANUAL:
- Hold the SSR-114H vertically, open the Jaws & place the jaws across the seal. This seal is very important as if the seal is crimped off-centre it may cause the strap to become loose & snap apart, possibly resulting in serious injury.
- Press the handle of the sealer together until the proper sealing is done, while keeping the sealer in vertical position. Repeat the operation if double notch is required, by placing the tool at a suitable place over the seal maintaining a suitable gap with previous notch.
- Remove the sealer & inspect the seal to verify the seal is properly holding the strap. The seal should have four impressions, one on each side. The notches should be centered on the seal. If impression isn’t properly formed, remove it & do it again with new seal & strap. Attempting to reseal will not ensure a proper seal & will decrease the break strength.
- Never use the sealer to break the strap. Breaking the strap without the proper cutter may cause the strap to snap back towards the operator, possibly resulting in serious injury. This action will also cause damage to the sealer, which will require the sealer to be repaired or replaced at owner’s expense.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate `SSR-114H`.
- Wear gloves, safety shoe, helmet & goggles before starting operation.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use equipment recommended for the strap. `SSR-114H` is recommended only for 1.10 mm to 1.27 mm thick × 31.75 mm width strap.
