Pneumatic Steel Strap Sealer
Model No.: SPSR-19
Pneumatic Steel Strap Sealer for 19 mm x 0.79 mm / 0.89 mm thick strap | Medium Duty Air Powered Strapping Sealing Tool | Single Notch Reverse (Up Cut) | For Regular & High Tensile Steel Straps.
Description
Ensure reliable and efficient strapping seals with this medium-duty pneumatic steel strap sealer, designed for consistent performance in industrial and commercial packaging applications. Built with a single notch reverse (up cut) sealing mechanism, this air-powered tool delivers secure and uniform joints, enhancing load stability during handling and transportation.
Download User Manual
Features:
- Medium duty Pneumatic Steel Strap Sealer.
- Single Notch reverse type (up cut).
- Easy to operate & maintain.
Specification:
- Strap Thickness : 0.64 mm – 0.89 mm / 0.025″- 0.035″
- Strap Width : 19.05 mm / 3⁄4″
- Grade : High Tensile, Painted and Waxed also can be used with M.S Strap.
- Joint Efficiency : 75% – 80%
- Operating Air Pressure : 6.0 kg/cm2 – 6.5 kg/cm2
- Weight : 3.4 kg / 7.49 lbs. (approx.)
- Dimension (L × W × H) : 258 mm × 110 mm × 252 mm / 10.15″ × 4.33″ × 9.92″

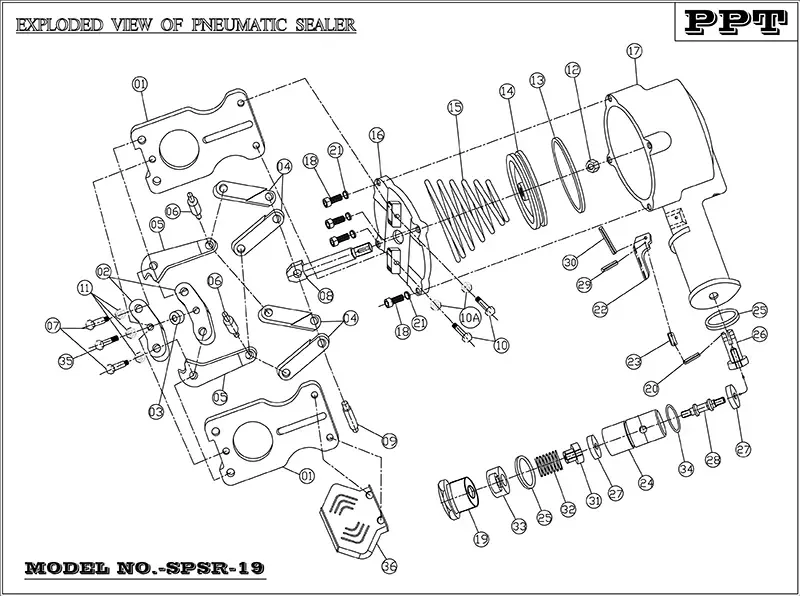

| INDEX NO. | PART NUMBER | PART NAME | QUANTITY |
|---|---|---|---|
| 1 | SP19E0001F | SIDE PLATE | 2 |
| 2 | SP19E0002F | NOTCHER PLATE (TYPE-A) | 2 |
| 3 | SP19E0003F | SPACER FOR NOTCHER | 1 |
| 4 | SP19E0004F | LINKS | 4 |
| 5 | SP3219C05F | JAW | 2 |
| 6 | SP3219C06F | JAW LINK PIN | 2 |
| 7 | SP3219C07F | BOLT FOR JAW NOTCHER SIDE PLATE | 2 |
| 8 | SP3219C08F | PISTON ROD | 1 |
| 9 | SP3219C09F | SLIDER PIN | 1 |
| 10 | SP3219C10F | BOLTS FOR SIDE PLATE & CYLINDER HEAD | 2 |
| 11 | SP3219C11F | HEX NUT FOR JAW, NOTCHER & SIDE PLATE BOLTS | 3 |
| 12 | SP3219C12B | NUT FOR PISTON ROD | 1 |
| 13 | SP3219C13B | OIL SEAL FOR PISTON | 1 |
| 14 | SP3219C14F | PISTON | 1 |
| 15 | SP3219C15B | CONICAL SPRING FOR PISTON | 1 |
| 16 | SP3219C16F | CYLINDER HEAD | 1 |
| 17 | SP3219C17F | CYLINDER BODY | 1 |
| 18 | SP3219C18B | SCREW FOR CYLINDER HEAD | 4 |
| 19 | SP3219C19F | AIR INLET NUT | 1 |
| 20 | SP3219C20B | C-PIN-1 | 1 |
| 21 | SP3219C21B | SPRING WASHER | 4 |
| 22 | SP3219C22F | TRIGGER | 1 |
| 23 | SP3219C23F | TRIGGER LINK | 1 |
| 24 | SP3219C24F | VALVE BODY | 1 |
| 25 | SP3219C25F | VALVE BODY WASHER | 2 |
| 26 | SP3219C26F | WASHER LOCK (LONG) | 1 |
| 27 | SP3219C27B | VALVE POPPET WASHER | 2 |
| 28 | SP3219C28F | VALVE POPPET | 1 |
| 29 | SP3219C29B | C-PIN-2 | 1 |
| 30 | SP3219C30B | C-PIN-3 | 1 |
| 31 | SP3219C31F | WASHER LOCK (SHORT) | 1 |
| 32 | SP3219C32B | SPRING FOR VALVE | 1 |
| 33 | SP3219C33F | SPRING CAP | 1 |
| 34 | SP3219C34B | O-RING FOR VALVE BODY | 2 |
| 35 | SP3219C35F | BOLT FOR SIDE PLATE NOTCHER & SPACER | 1 |
| 36 | SP3219C36B | RUBBER JACKET | 1 |
| 37 | SP3219C37B | NYLOCK NUT M8 | 2 |
OPERATIONAL MANUAL:
- Before connecting the pneumatic hose connector with the machine, ensure the FRL unit is fitted with the pneumatic hose line and the hose is in safe working condition.
- Connect the pneumatic connector to the tool.
- Check the on-line air pressure.
- Hold the tool vertically and place the jaws across the seal. Proper positioning is very important, as an off-center crimp may cause the strap to loosen or snap, possibly resulting in serious injury.
- Press the trigger to seal the strap.
- Remove the sealer and inspect the seal to ensure it is properly holding the strap. The seal should have two impressions, one on each side, centered on the seal. If the impression is not properly formed, remove it and repeat the process using a new seal and strap. Do not reseal the same seal, as it reduces strength.
- If double notch is required then repeat the 4th operation after placing. The tool over the seal maintain proper space from the previous notch.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear, damage leaks.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine – especially the lubricating point provided in the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate the tool.
- Wear gloves, safety shoes, helmet, and goggles before starting operation.
- Remove oil or grease from hands, tools, and the working area before operation.
- Keep fingers away from areas that can pinch or cut, especially near the front of the tool.
- Use only the recommended equipment and straps as specified in the catalogue.
