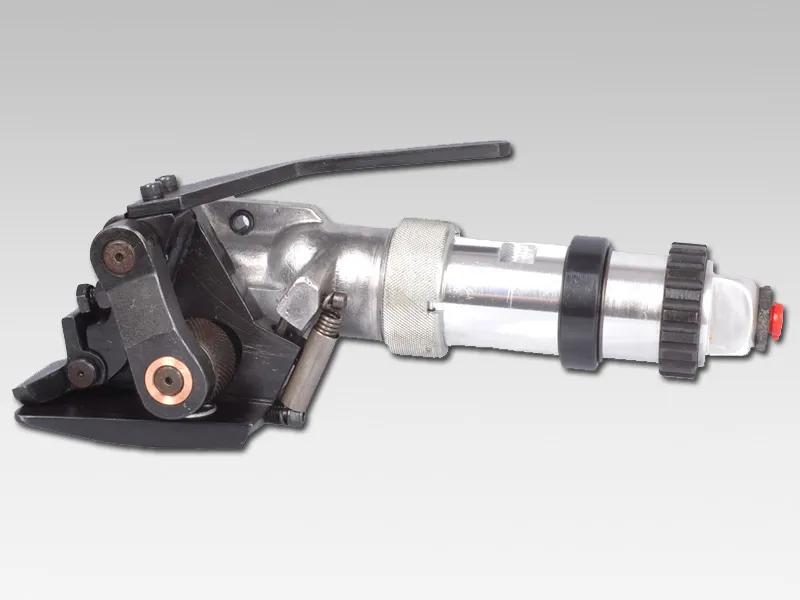

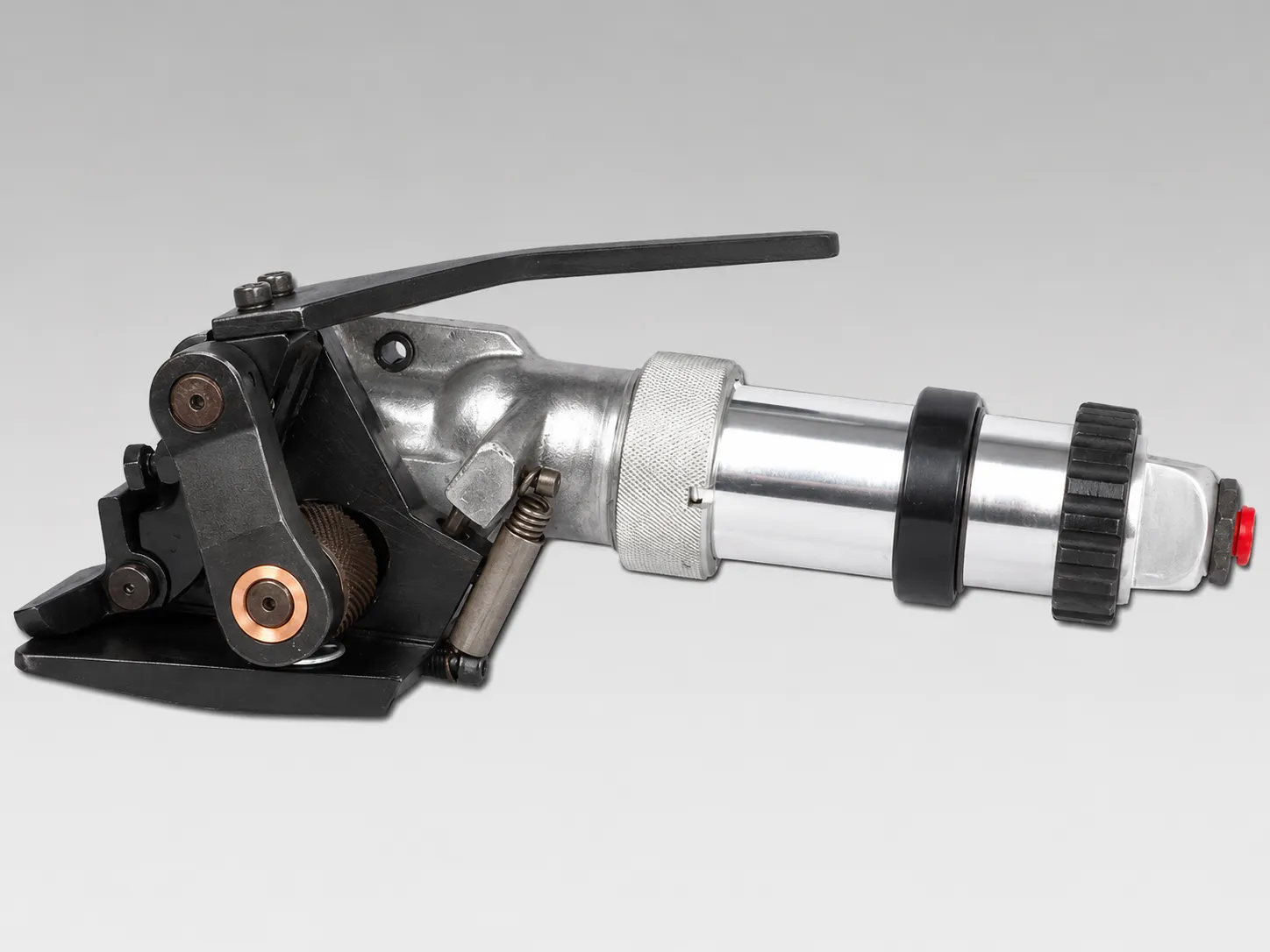

Pneumatic Tensioner T-177E
MODEL NO.: T-177E
- Pneumatic Pusher type Tensioner.
- Strap thickness – Up to 0.89mm/0.035”
- Strap width – 19.05- 31.75mm / 3⁄4″ – 11/4”
- Grade – High Tensile.
- Operating Air pressure – 5.5 – 6.0 kg/cm2
- Tension Achievable – 725 kg/1600 lb at 6kg/cm2 (84 psi)
₹55,000.00
Product Details
FEATURES
- Pneumatic Pusher type Steel Strap Tensioner
- Suitable for used with high tensile and lubricated strap
- Easy to operate and maintain
- Suitable for use on Flat, Round, Irregular & Narrow Surface
SPECIFICATIONS
Strap Thickness: Up to 0.89 mm / 0.035”
Strap width: 19.05 – 31.75 mm / 3⁄4″-11/4”
Grade: Regular Duty/ High Tensile and lubricated
Tension Achievable: 725 kg / 1600lb at 6 kg/cm2 (84 psi)
Operating Air Pressure: 5.5 – 6.0 kg/cm2
Weight: 4.550 kg / 10 lb
Dimension (L X W X H): 307 x 120 x 120 mm / 12”x 4.7”x 4.7”
OPERATIONAL MANUAL
- Pull the strap from the coil & insert the strap in to the seal in such a way so that flat surface of the seal remains facing outside the strap.
- Apply the strap around the package and bottom strap insert through the seal. Then hold the overlap portion of the straps with your left hand.
- Bend the extended strap as Hook against the seal.
- Pull out excess slack with your right hand.
- Hold together the handle and body of the air motor with your right hand and lift upward the air motor portion against the handle to make gap between feed wheel & lower Roller.
- Insert the top strap under the strap guide & feed wheel of the tool, at the same time push the tool forward against the Seal, and release by the air motor body.
- Turn the Control ring clockwise for tensioning until the proper tension achieved & switch off the motor by turning the control ring anti -clockwise.
- Seal the strap by using the recommended Sealer.
- Swing the tool up & down until the strap is cut off.
SAFETY INSTRUCTIONS
- Before using the tool, read the operating instructions carefully.
- Wear hand gloves, safety shoe, Helmet, goggles during operation.
- When cutting the strap hold the upper portion and stand safely away from the strap.
- Do not stand in line with the strap while it is tensioned. The strap may break.
- Do not put your fingers into the Tensioner wheel area.
- Do not put your hand under the strap on the job while strap is tensioned.
- Only use equipment recommended for the strap.`T177R’ are recommended only for 0.64 mm to 0.89 mm thk. X 19.05mm and 31.75mm width.
Additional information
| Weight | 5.500 kg |
|---|---|
| Dimensions | 38 × 18 × 13 cm |
