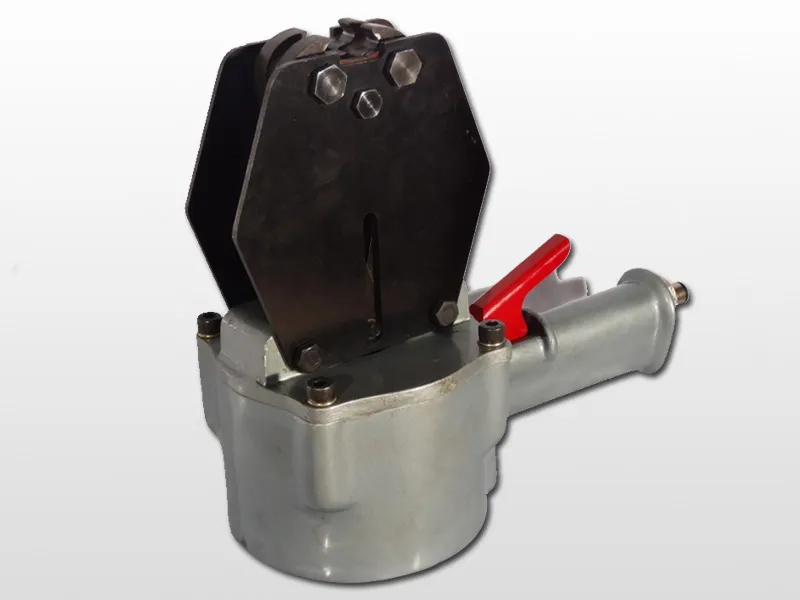

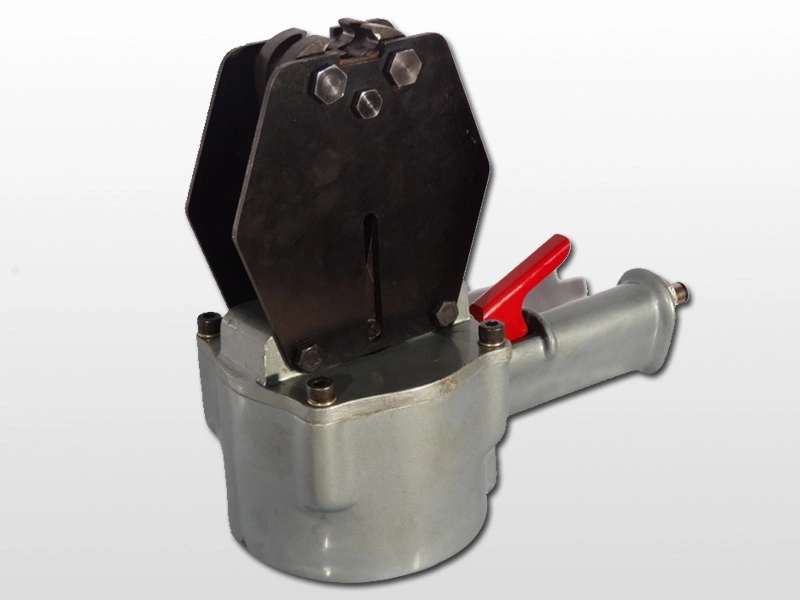

Pneumatic Steel Strap Sealer
Model No.: SPDR-19
Pneumatic Steel Strap Sealer for 19 mm x 0.79 / 0.89 mm thick strap | Heavy Duty Air Powered Strapping Sealing Tool | Double Notch Reverse Type (Up Cut) | For Regular & High Tensile Steel Straps.
Description
Ensure strong and reliable strapping joints with this heavy-duty pneumatic steel strap sealer, designed for high-performance industrial packaging applications. Built with a double notch reverse (up cut) sealing mechanism, this air-powered tool delivers secure and consistent seals, enhancing load stability during storage and transportation.
Download User Manual
Features:
- Heavy duty Pneumatic Steel Strap Sealer.
- Double Notch reverse type (up cut).
- Easy to operate & maintain.
Specification:
- Strap Thickness : 0.64 mm – 0.89 mm / 0.025 ̎ – 0.035 ̎
- Strap Width : 19.05 mm / ¾ ̎
- Grade : High Tensile, Painted and Waxed also can be used with M.S Strap.
- Joint Efficiency : 75% – 80%
- Operating Air Pressure : 6.0 kg/cm2 – 6.5 kg/cm2
- Weight : 4.2 kg / 9.24 lb. (approx.)
- Dimension (L × W × H) : 305 mm × 100 mm × 165 mm / 12 ̎ × 4 ̎ × 6.5 ̎

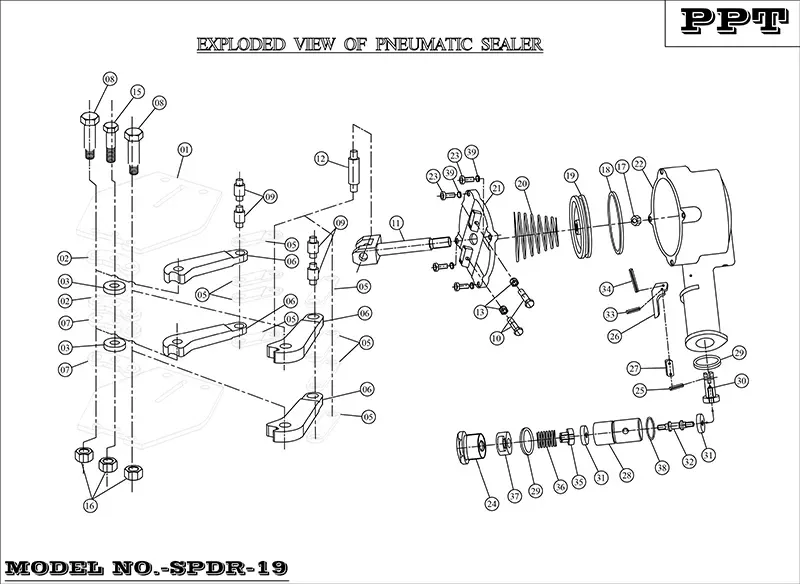

| Index No. | Part Number | Part Name | Quantity |
|---|---|---|---|
| 01 | SP19E0001F | SIDE PLATE | 2 |
| 02 | SP19E0002F | NOTCHER PLATE (TYPE-A) | 2 |
| 03 | SP19E0003F | SPACER FOR NOTCHER AND SIDE PLATE | 2 |
| 04 | omitted | omitted | omitted |
| 05 | SP19E0004F | LINKS | 8 |
| 06 | SP3219C05F | JAW | 4 |
| 07 | SMDR18200F | NOTCHER PLATE (TYPE-B) | 2 |
| 08 | SP19E0008F | BOLT FOR JAW NOTCHER & SIDE PLATE | 2 |
| 09 | SP3219C09F | JAW-LINK PIN | 4 |
| 10 | SP19E0010F | BOLT FOR SIDE PLATE & CYLINDER HEAD | 2 |
| 11 | SP19E0011F | PISTON ROD | 1 |
| 12 | SP19E0012F | SLIDER PIN | 1 |
| 13 | SP19E0013F | NYLOCK NUT M8 | 2 |
| 14 | omitted | omitted | omitted |
| 15 | SP19E0015F | BOLTS FOR SIDE PLATE NOTCHER & SPACER | 1 |
| 16 | SP19E0016B | HEX NUT M8 | 3 |
| 17 | SP19E0017F | NUT FOR PISTON ROD | 1 |
| 18 | SP19E0018F | OIL SEAL FOR PISTON | 1 |
| 19 | SP19E0019F | PISTON | 1 |
| 20 | SP19E0020F | CONICAL SPRING FOR PISTON | 1 |
| 21 | SP19E0021F | CYLINDER HEAD | 1 |
| 22 | SP19E0022F | CYLINDER BODY | 1 |
| 23 | SP19E0023F | SCREWS FOR CYLINDER HEAD | 4 |
| 24 | SP3219C19F | AIR INLET NUT | 1 |
| 25 | SP3219C20B | ‘C’ PIN – 1 | 1 |
| 26 | SP3219C23F | TRIGGER | 1 |
| 27 | SP3219C24F | TRIGGER LINK | 1 |
| 28 | SP3219C25F | VALVE BODY | 1 |
| 29 | SP3219C26F | VALVE BODY WASHER | 2 |
| 30 | SP3219C27F | WASHER LOCK (LONG) | 1 |
| 31 | SP3219C28B | VALVE POPPET-WASHER | 2 |
| 32 | SP3219C29F | VALVE POPPET | 1 |
| 33 | SP3219C30B | ‘C’ PIN – 2 | 1 |
| 34 | SP3219C31B | ‘C’ PIN – 3 | 1 |
| 35 | SP3219C32F | WASHER LOCK (SHORT) | 1 |
| 36 | SP3219C33B | SPRING FOR VALVE | 1 |
| 37 | SP3219C34F | SPRING CAP | 1 |
| 38 | SP3219C35B | ‘O’ RING FOR VALVE BODY | 1 |
| 39 | omitted | omitted | 0 |
OPERATIONAL MANUAL:
- Before connecting the pneumatic hose connector with machine please check the FRL is fitted with pneumatic hose line and the hose in safe working condition.
- Check the Pneumatic connector with the tool.
- Check the on line air pressure.
- Hold the tool vertically & place the jaws across the seal. This seal is very important as if the seal is crimped off-center it may cause the strap become loose & snap apart, possibly resulting in serious injury.
- Press the trigger to seal the strap.
- Remove the sealer & inspect the seal to verify the seal is properly holding the strap. The seal should have four impressions, two on each side. The notches should be centered on the seal. If impression isn’t properly formed, remove it & do it again with new seal & strap. Attempting to reseal will not ensure a proper seal & will decrease the break strength.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear, damage leaks.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine – especially the lubricating point provided in the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate `SPDR-19`.
- Wear Gloves, Safety shoe, Helmet & Goggle before starting operation.
- Remove oil or grease from your hands, tools and from the working area.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use equipment recommended for the strap. `SPDR-19` is recommended only for 0.64 mm to 0.89 mm thick x 19.05 mm width strap.
