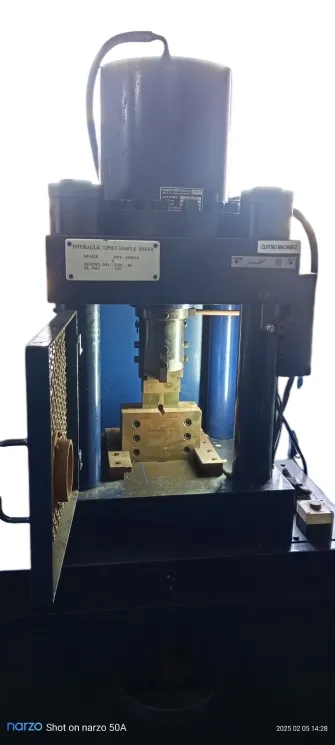

Hydraulic Upset Shearing Machine
Model No.: USC-36
Hydraulic Upset Shear Machine | Heavy Duty Rod Cutting & Shearing Press | Industrial Hydraulic Shearing Machine for Ø5 mm – Ø36 mm Rods | High Pressure Automatic Shearing System
Description
Enhance your metal processing efficiency with this hydraulic upset shearing machine, designed for precision cutting of rods from Ø5 mm up to Ø36 mm. Built to handle materials with tensile strength up to 800 MPa, it operates at a maximum pressure of 315 bar, ensuring powerful and consistent performance. The machine features a double-acting hydraulic cylinder and a radial piston pump for smooth operation, controlled through an semi automatic electromechanical system with solenoid-operated DC valves. Supplied with a Die and Punch set for Ø36 mm rods. Hydraulic Cold Upset Shear used to cut the rods as per standard length (Dia of rod x 1.5) for preparation of sample of Cold Upset testing. The sample should be both side parallel, clean and perpendicular to the length.
Download User Manual
Features:
- Maximum Shear Capacity: Ø5.0 mm to Ø36.0 mm
- Material Hardness: Up to 200 BHN
- Maximum Operating Pressure: 315 Bar
- Pump: Radial piston pump
- Cylinder: Double acting system
- Capacity: As per force required
- Hydraulic Oil Grade: Servo 68 or equivalent
- Valve System: Operated by solenoid controlled D.C. valve
- Operated By: Electrical controller system
- Method of Operation: Semi-automatic electromechanical control system

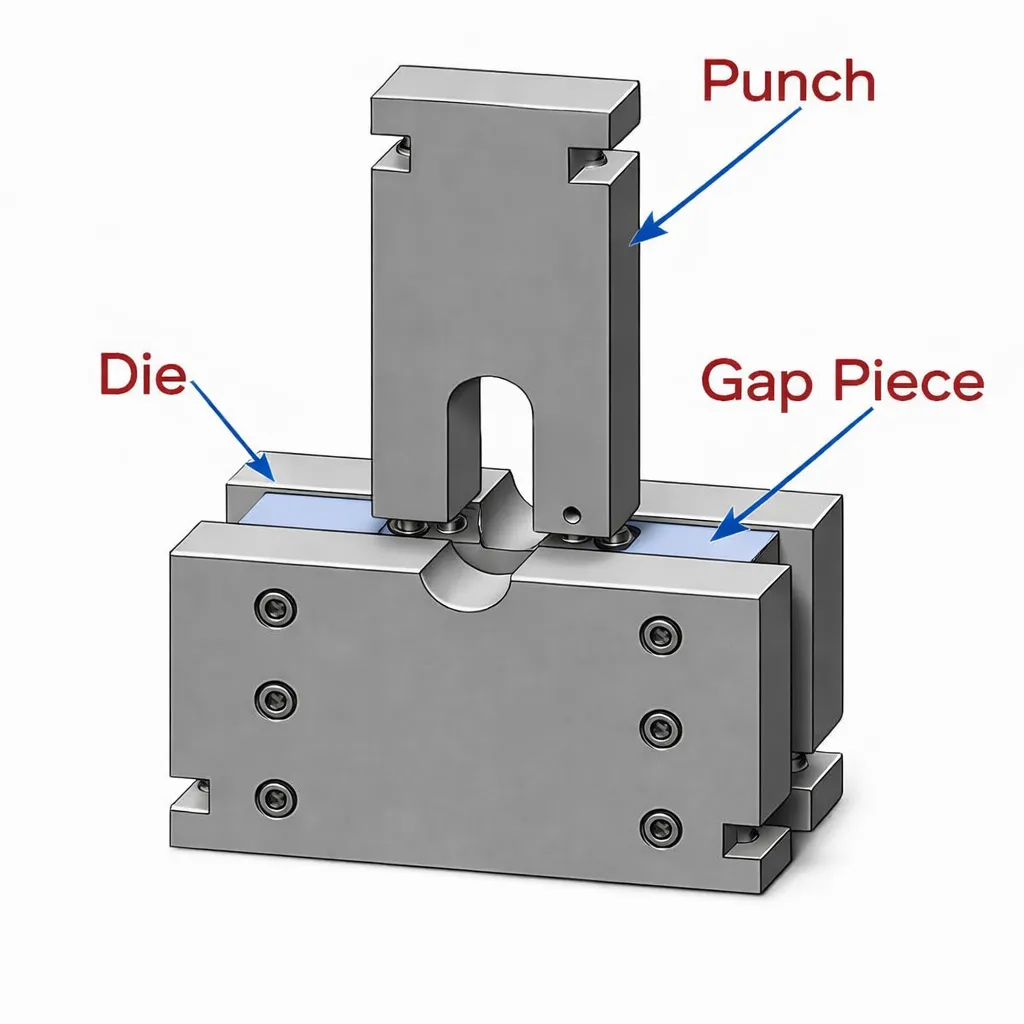

- Machine will be supplied with one set of Die & Punch for diameter 36 mm rod.
- Additional Die & Punch will be supplied with additional cost.
