Hydraulic Shear and Cold Upset Press
Model No.: PHUSP-25
Hydraulic Shear used for to cut the rods as per Standard Length (dia of rod x 1.5). The sample should be both sides Parallel, clean and perpendicular to the length. Hydraulic cold upset press used to compress the sample of rod upto 80% (max) reduction for quality checking purpose.
Description

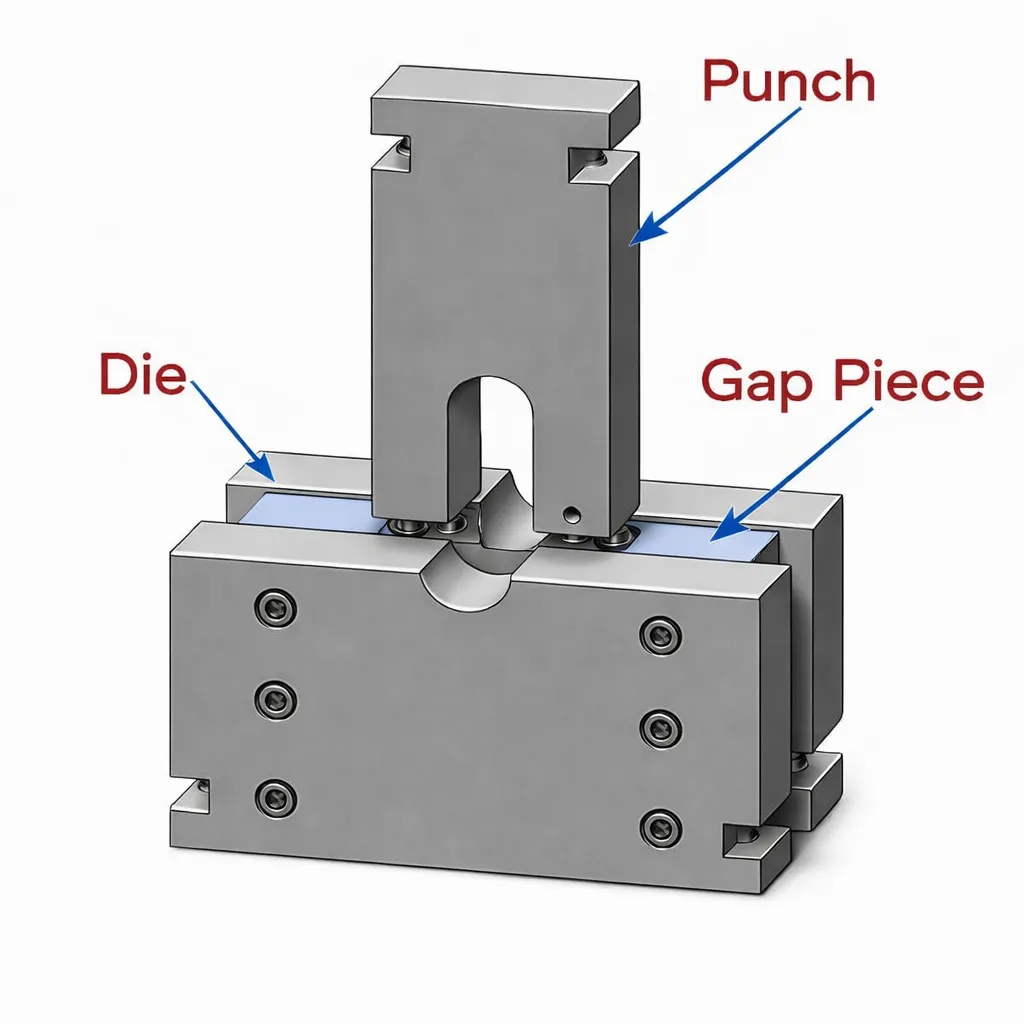

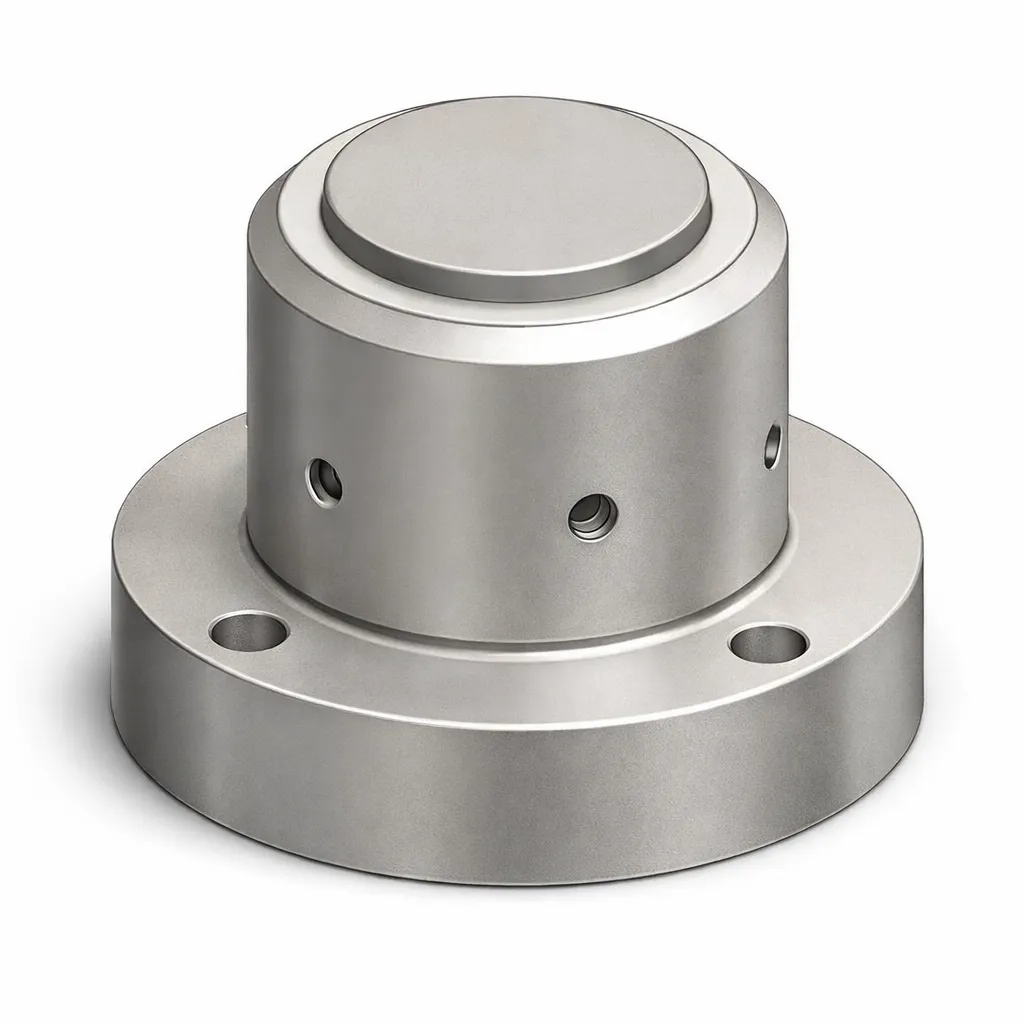

The shear press has a Double acting Cylinder of Stroke Length 50 mm – 55 mm. The Stroke length controlled by two limit switches. Both switches are non-adjustable and factory set. The punch is fitted with the Ram end by suitable mounting holder. Die is mounted on the main base plate by the suitable holders. Cold upset testing is a vital quality control step in wire rod mills used to evaluate a steels ability to undergo severe cold forming (like cold heading) without failing. It ensures the material can withstands extreme deformation without developing dangerous structural cracks, splits or seams.
Download User Manual
Specification for COLD UPSET SHEAR:
- Maximum Shear Capacity : Ø5.0 mm – Ø25.0 mm
- Material Hardness : Up to 200 BHN
- Maximum Operating Pressure : 315 Bar
- Pump : Radial Piston Pump
- Cylinder : Double Acting System
- Cylinder Assembly : Will be Mounted on the Top of the Press.
- Capacity : As per Force Required
- Hydraulic Oil Grade : Servo 68 or equivalent
- Valve System : Operated by solenoid controlled D.C. valve
- Operated By : Electrical Controller System
- Method of Operation : Semi-automatic Electromechanical Control System.
Specification for COLD UPSET PRESS:
- Load : 400 Ton
- Material Hardness : Up – 200 BHN
- Maximum Pressing Capacity : Up – Ø25 mm
- First and Free approach speed : 15 mm/sec. – 20 mm/sec.
- Pressing Speed : 4 mm/sec. (approx.)
- Return Speed : 20 mm/sec. – 30 mm/sec.
- Stroke Length : 80 mm – 100 mm
- Working Pressure : 250 Bar / 315 Bar
- Cylinder : Double Acting System
- Cylinder Assembly : Will be Mounted on the Top of the Press.
- Pump : Radial Piston Pump / Vane Pump
- Valve System : Operated by Sol. Controlled D.C. Valve
- Operated By : Electrical Controller System.
- Method of Operation : Semi-automatic Electromechanical Control System / PLC Control HMI System.
