Pneumatic Steel Strap Sealer
Model No.: PSNDS-11450
Heavy Duty Pneumatic Steel Strap Sealer for 32 mm x 1.27 mm thick strap | Side Action Air Powered Strapping Tool | Single Notch Down Cut | For High Tensile, Painted, Waxed & M.S Steel Straps.
Description
Secure your heavy-duty packaging with confidence using this industrial-grade pneumatic steel strap sealer, engineered for high-strength applications and consistent sealing performance. Featuring a single notch regular (down cut) side action mechanism, this air-powered tool delivers strong and reliable seals, ensuring maximum load stability during transport and storage and Wagon Unitization.
Download User Manual
Features:
- Heavy duty Pneumatic Steel Strap Sealer.
- Single Notch Regular type (Down Cut) Side Action.
- Easy to operate & maintain.
Specification:
- Strap Thickness : 1.27 mm / 0.050″
- Strap Width : 31.75 mm / 1 ¼ “
- Grade : High Tensile, Painted and Waxed.
- Joint Efficiency : 75% – 80% for Single Seals, 80% – 85% for Double Seals (Seals -117H).
- Operating Air Pressure : 7.0 kg/cm2 – 7.5 kg/cm2 during Operation at Tool Point.
- Weight : 6.9 kg / 15.1 lb. (approx.)
- Dimension (L × W × H) : 442 mm × 185 mm × 250 mm / 17.4″ × 7.3″ × 9.84″

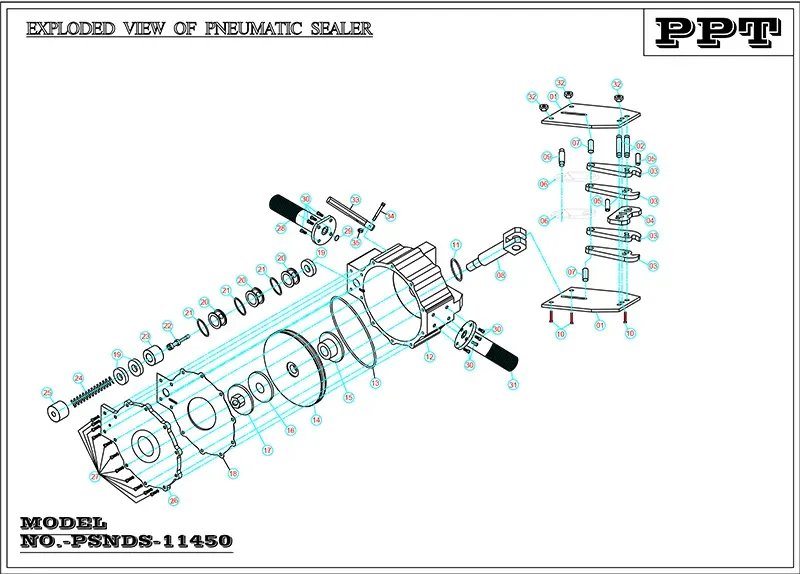

| Part No. | Part Number | Part Name | Qty. |
|---|---|---|---|
| 1 | PSNDS0001F | SIDE PLATE | 2 |
| 2 | PSNDS0002F | PIN FOR SIDE PLATE, JAW AND NOTCHER | 2 |
| 3 | PSNDS0003F | JAW | 4 |
| 4 | PSNDS0004F | NOTCHER | 1 |
| 5 | PSNDS0005F | PIN FOR JAW AND NOTCHER | 2 |
| 6 | PSNDS0006F | LINK | 2 |
| 7 | PSNDS0007F | JAW LINK PIN | 2 |
| 8 | PSNDS0008F | PISTON ROD | 1 |
| 9 | PSNDS0009F | SLIDER PIN | 1 |
| 10 | PSNDS0010F | BOLT FOR SIDE PLATE AND NOTCHER | 3 |
| 11 | PSNDS0011F | O RING FOR CYLINDER BODY | 1 |
| 12 | PSNDS0012F | CYLINDER BODY | 1 |
| 13 | PSNDS0013F | O RING FOR PISTON | 1 |
| 14 | PSNDS0014F | PISTON | 1 |
| 15 | PSNDS0015F | PISTON SUPPORT SPACER | 1 |
| 16 | PSNDS0016F | PISTON SUPPORT WASHER | 1 |
| 17 | PSNDS0017F | LOCK NUT FOR PISTON ROD | 1 |
| 18 | PSNDS0018F | GASKET | 1 |
| 19 | PSNDS0019F | RUBBER WASHER FOR VALVE | 3 |
| 20 | PSNDS0020F | VALVE NET SPACER | 3 |
| 21 | PSNDS0021F | VALVE O RING | 3 |
| 22 | PSND22322F | VALVE STEM | 1 |
| 23 | PSNDS0023F | VALVE SPACER NO.-1 | 1 |
| 24 | PSNDS0024F | VALVE SPRING | 1 |
| 25 | PSNDS0025F | VALVE SPACER NO.-2 | 1 |
| 26 | PSNDS0026F | CYLINDER BODY COVER | 1 |
| 27 | PSNDS0027F | SCREW FOR CYLINDER BODY | 12 |
| 28 | PSND22328F | HANDLE NO.-1 | 1 |
| 29 | PSNDS0029F | O RING FOR HANDLE NO.-1 | 1 |
| 30 | PSNDS0030F | SCREW FOR HANDLE | 8 |
| 31 | PSNDS0031F | HANDLE NO.-2 | 1 |
| 32 | PSNDS0032F | NYLOCK NUT FOR SIDE PLATE | 1 |
| 33 | PSNDS0033F | TRIGGER | 1 |
| 34 | PSNDS0034F | SCREW FOR TRIGGER | 1 |
| 35 | PSNDS0035F | NUT FOR TRIGGER SCREW | 1 |
OPERATIONAL MANUAL:
- Before connecting the pneumatic hose connector with machine please check the FRL is fitted with pneumatic hose line and the hose is in safe working condition.
- Check the Pneumatic connector with the tool.
- Check the on line air pressure.
- Hold the tool vertically & place the jaws across the seal. This seal is very important as if seal is crimped the off-centre it may cause the strap become loose & snap apart, possibly resulting in serious injury.
- Press the trigger to seal the strap.
- Remove the sealer & inspect the seal to verify the seal is properly holding the strap. The seal should have four impressions, two on each side. The notches should be cantered on the seal. If impression isn`t properly formed, remove it & do it again with new seal & strap. Attempting to reseal will not ensure a proper seal & will decrease the break strength.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine – especially the lubricating point provided in the machine.
WEEKLY INSPECTION:
- Clean the machine to prevent dust and debris build-up.
- Check and tighten all bolts and fasteners.
- Replace any worn-out components.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Only trained personnel should operate `PSNDS-11450’.
- Wear Gloves, Safety shoe, Helmet & Goggle before starting operation.
- Remove oil or grease from your hands, tools and from the working area.
- Keep fingers away from areas that can pinch or cut. These areas are primarily located at the front of the tool.
- Only use this equipment recommended for the strap. `PSNDS-11450’ recommended only for 1.27 mm / 0.050” thick × 31.5.75 mm / 1¼” width strap.
