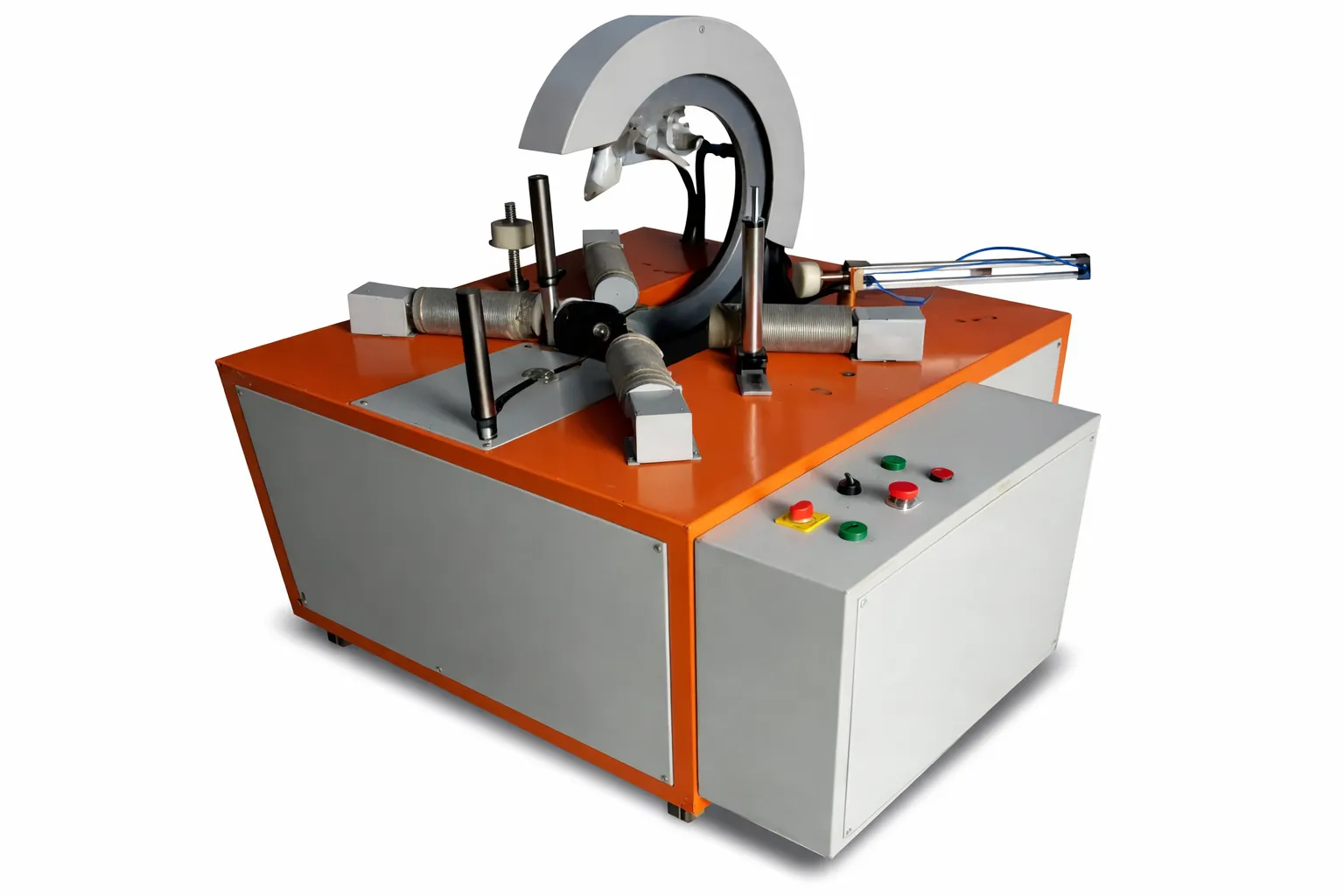

Binding Wire Horizontal Wrapping Machine
Model No.: PHWM-450
Horizontal Coil Wrapping Machine | Binding Wire Packing Machine with VVVF Control | Stretch Film & HDPE Wrapping System for 450 mm Coils | Industrial Coil Packaging Solution
Description

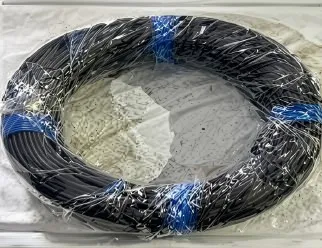

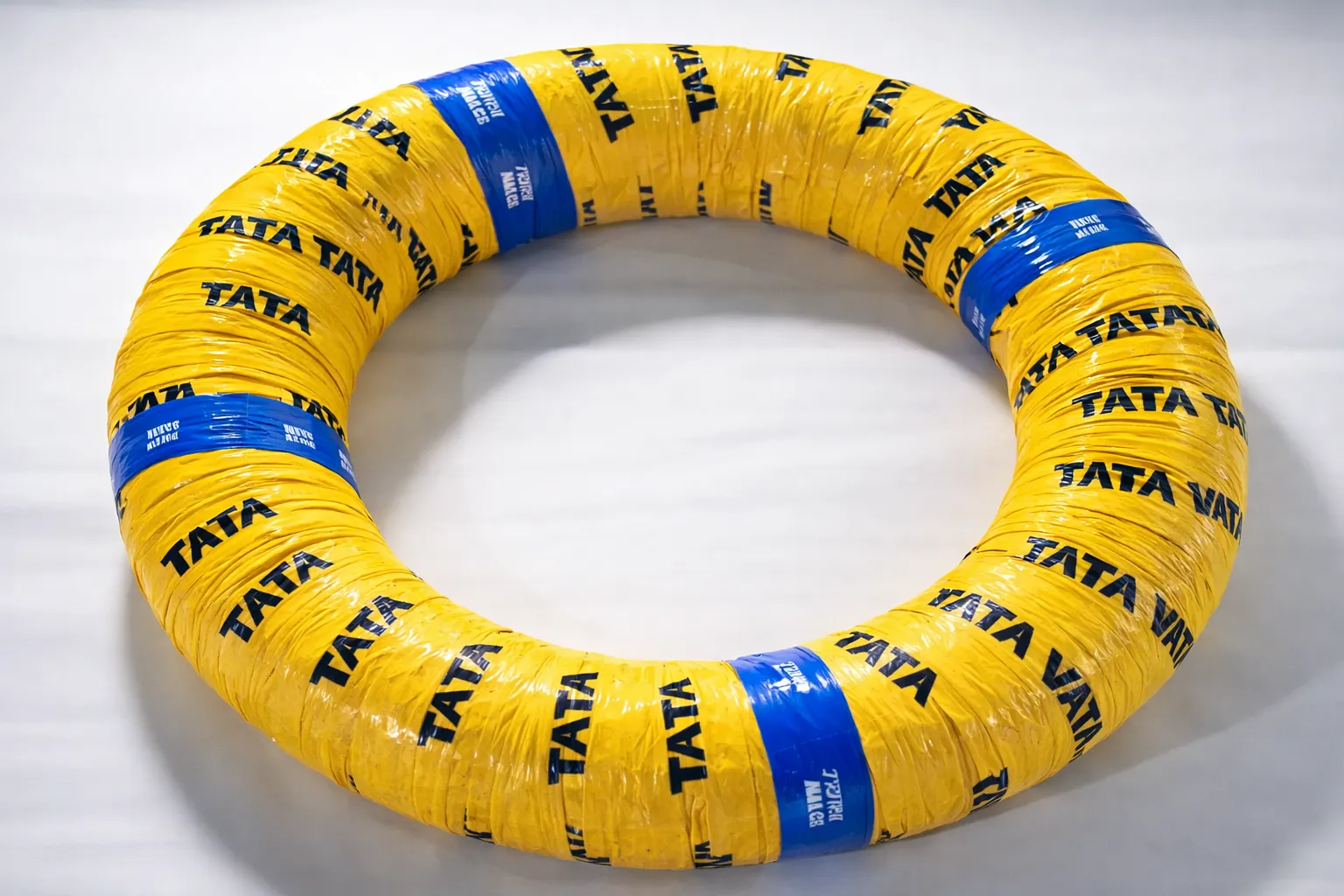

Binding wire coil wrapping machine are industrial, often automatic requiring minimal manual labour for loading and unloading, system designed to pack wire coils securely using stretch film, HDPE, protecting them from moisture and damage. These machine typically feature orbital wrapping rings, adjustable tension & overlap of film, PLC controlled, user friendly interfaces, often operating at 380 V – 415 V. Built with heavy duty mild steel for robust design and longer life. The machine is designed for continuous operation, ease of operation, reliability and minimum maintenance.
Capacity of this machine is for wire coil of I/D 350 mm, O/D 450 mm, 150 mm thick and weight 25 kg to 35 kg.
Download User Manual
Features:
- Adjustable film Overlap.
- Motor for wrapping Ring & Horizontal Roller is controlled by VVVF.
- Controllable Cycle Time.
- Brought out Components used in the machine are of reputed makes.
- Adjustable Stretch ratio.
- Vibration free operation.
- Can be adjustable as per Client requirement.
- Unique design of Bobbin Holder for STRETCH FILM and HDPE Rolls.
Specification:
Details of Coil (Product):
- Inner Dia of Coil : 350 mm / 13.77″
- Outer Dia of Coil : 450 mm / 17.71″
- Thickness of Coil : 150 mm / 5.9″
- Weight : 25 kg to 35 kg / 55.11 lb. to 77.16 lb.
- Roll (Stretch Film) Width : 75 mm / 2.95″ (adjustable as per client requirement)
- Roll (HDPE) Width : 65 mm / 2.55″ (adjustable as per client requirement)
- Roller : Alloy Steel Roller with Rubber Moulding
- Control System : Contactor, Overload Relay, MCB, Indicator, ON/OFF Switch, VVVF and Transformer
- Inching System : For Fine Adjustment of Horizontal Roller with Coil
- Machine Power Requirement : 3 Phase + Neutral + Earthing (415 V AC, 50 Hz)
- Motor Power : 2.0 HP
