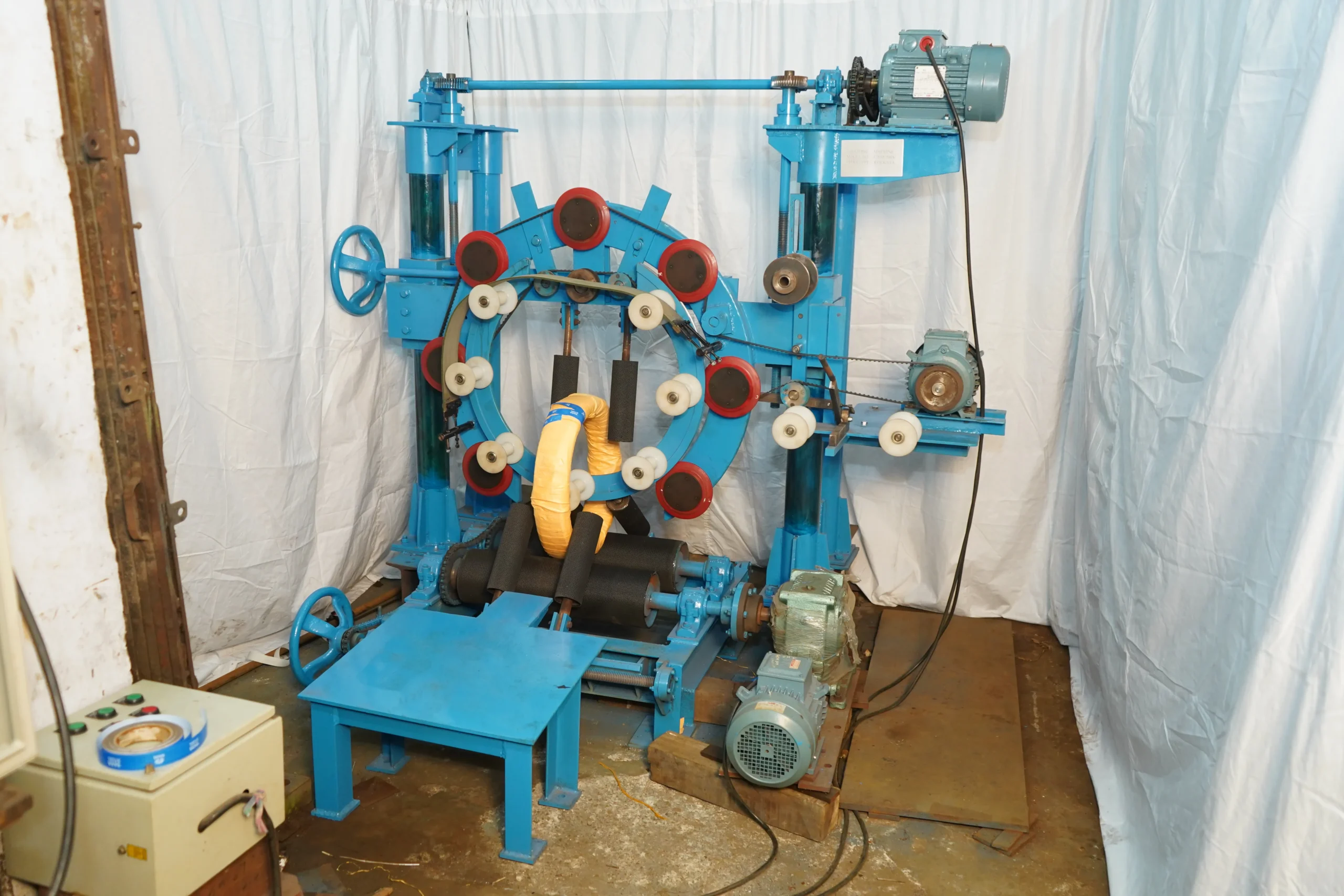

Vertical Wire Coil Wrapping Machine
Model No.: CMW - 750 V
Vertical Coil Wrapping Machine | Heavy Duty Wire Coil Packing Machine | VVVF Controlled Industrial Wrapping System for 400 mm – 750 mm Coils | Automatic Coil Packaging Solution
Description
Optimize your coil packaging process with this vertical wire coil wrapping machine, engineered for coils with outer diameters from 400 mm – 750 mm and weights up to 500 kg. Designed with PU rollers and HSS cutters for durability and precision, it ensures smooth and reliable wrapping operations. Equipped with a compact electrical control panel featuring VVVF drive, overload protection, and adjustable cycle time, the machine offers efficient, vibration-free performance. With 11 HP total motor power and compatibility for various coil sizes, it delivers consistent results for demanding industrial applications.
Download User Manual
Features:
- Motor for wrapping ring and horizontal roller is controlled by VVVF drive
- Controllable cycle time
- All bought-out components used in the machine are of reputed makes
- Adjustable overlap ratio
- Vibration-free operation
- Adjustable for different coil sizes as per client requirement
- Unique design of bobbin holder for HDPE rolls
Specification:
Details of Coil (Product):
- Inner Dia : 250 mm – 450 mm / 9.8″ – 17.71″ (minimum to maximum)
- Outer Dia : 400 mm – 750 mm / 15.74″ – 29.52″ (minimum to maximum)
- Width : 100 mm – 400 mm / 3.93″ – 15.74″
- Coil Weight : 100 kg – 500 kg / 220.46 lb. – 1102.31 lb.
- Cutter : HSS Material Make Cutter
- Roller : PU Roller Fitted with Bearings
- Control System : Compact Electrical Control Panel Fitted with VVVF Drive, Overload Relay, MCB, Indicator, ON/OFF Switch and Transformer
- Machine Power Requirement : 3 Phase + Neutral + Earthing (415 V AC, 50 Hz)
- Number of Motors : 3 nos.
- Motor Power : Motor 1 – 3 HP, Motor 2 – 3 HP, Motor 3 – 5 HP
- Total Motor Power : 11 HP
