MANUAL HYDRAULIC CUTTER
Model No.: MHRC-25V

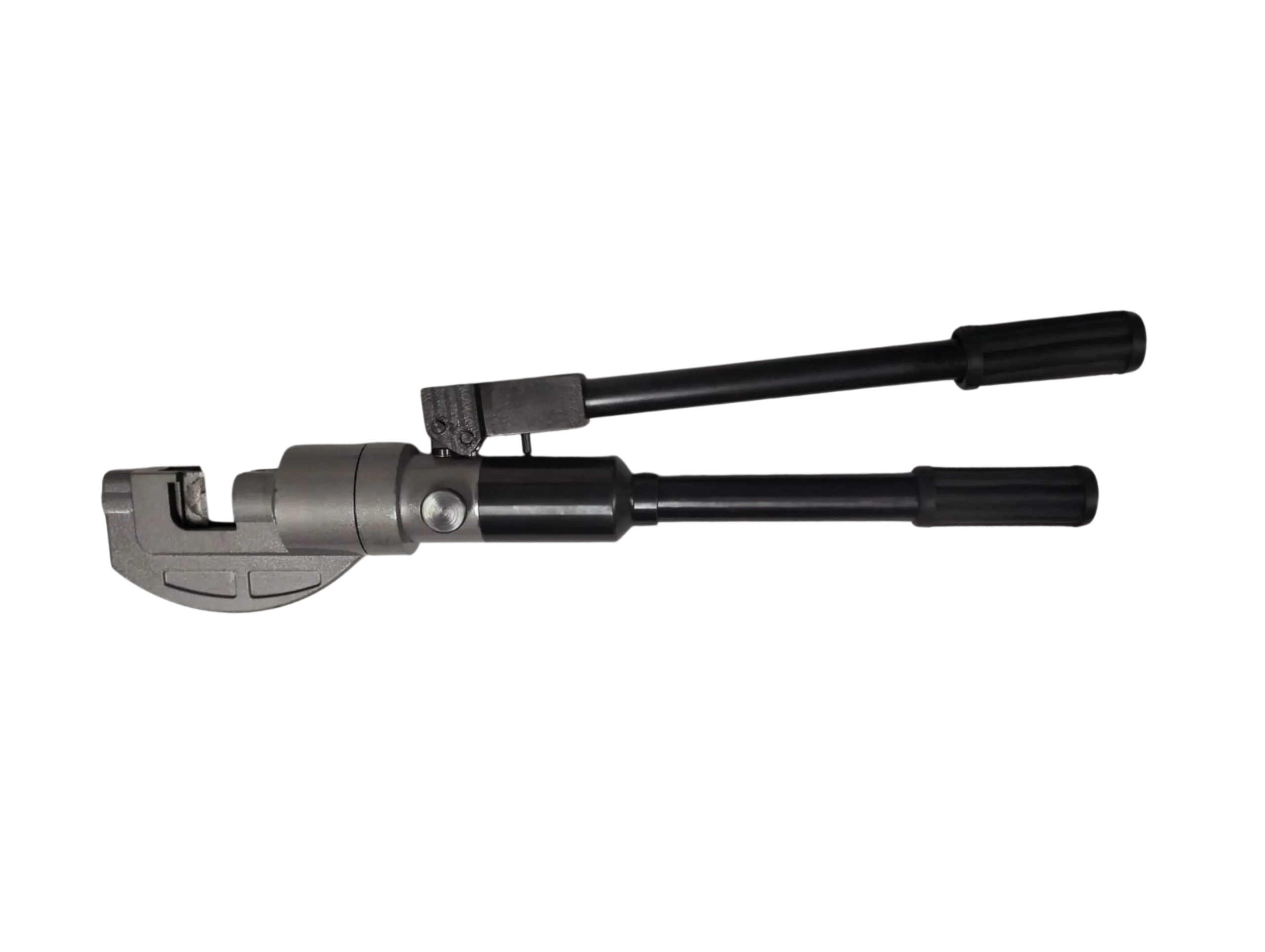

Manual Hydraulic Cutter MHRC – 25V – 13 Ton Force, Portable Design
Description
The MHRC – 25V delivers 13-ton cutting power for ferrous and non-ferrous materials. Compact and portable, it features a plunger pump, V-type blade, and handles Ø4 mm – Ø24 mm rods, ensuring reliable offline cutting with lightweight efficiency.
Download User Manual
Features:
- Manual hydraulic cutter designed for cutting ferrous and non-ferrous materials.
- High cutting force with up to 13-ton capacity.
- Compact, lightweight, and portable design suitable for offline cutting operations.
Specification:
- Shear Material Dia. : 16 mm TMT or 24 mm Aluminium
- Maximum Load Capacity : 13 Ton
- Blade Type : “V” Blade
- Oil Storage Capacity : 70 cc
- Stroke Length : 0 mm – 25.5 mm
- Operation Mode : Manual
- Weight : 7.5 kg
- Dimension (L × W × H) : 638 mm × 150.5 mm × 80.7 mm
