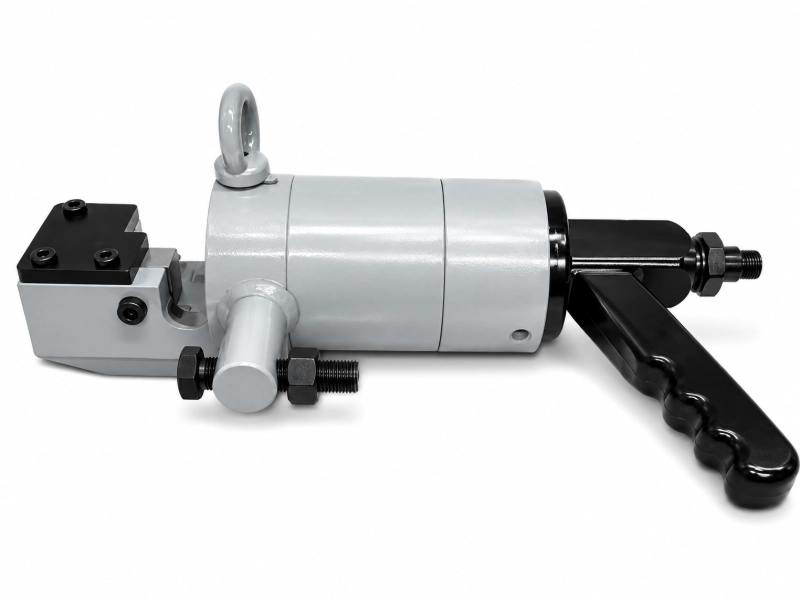

Hydraulic Rod Cutter
Model No.: HRC-40HS
PPT Hydraulic Rod Cutter HRC-40HS – 40 mm Capacity, Forged Alloy Steel, Heavy Duty Industrial Tool with Heat-Treated Standard Blade.
Description
The PPT Hydraulic Rod Cutter HRC-40HS is engineered for heavy-duty rod cutting in steel industries, offering precision, durability, and long service life. Built with a forged alloy steel heat-treated “C” frame and specially treated blade, it delivers up to 108,252 Kgf cutting force. Despite its robust build, it remains easy to operate, maintain, and ensures accurate blade alignment for industrial applications. This cutter is suitable for cutting sample rod from the Wire Rod Coil or Long Bar for Q.C. Lab.
Download User Manual
FEATURES:
- Forged alloy steel heat treated “C” frame type cylinder body used.
- Single return spring design.
- Special quality sealing for specified pressure.
- High wear resistant Moving Blade guide square bushing for accurate Blade alignment.
- Easy to operate & maintain.
- Lighter in weight than Cast Steel design.
- Unique design of Blade and special steel & Heat Treatment process used for longer life.
- Wide range of Hydraulic Power Pack used for different application of the user requirement.
- Single piece ram & piston design for easy maintenance.
- Suitable tool hanger fitted to positioning the tool at any angle for easy to operate.
Specification:
| Model No. | Weight | Length | Width | Height | ||||
|---|---|---|---|---|---|---|---|---|
| lb. | kg | inch | mm | inch | mm | inch | mm | |
| HRC-40HS | 253 | 115 (approx.) | 21.65 | 550 | 10.43 | 265 | 12.2 | 310 |
| Model No. | Dia. capacity (mm) | Tensile strength (kg/mm²) | Shear Strength (kg/mm²) | Cutting Force reqd. (kgf) | Cutting force generated (kgf) @450 bar W.P. x 6.0lpm |
|---|---|---|---|---|---|
| HRC-40HS | Ø 40.0 | 110 | 71.5 | 89861 | 108252 |
| Ø 36.0 | 125 | 81.25 | 82713 | ||
| Ø 32.0 | 125 | 81.25 | 65354 |
Note:
- Considering shear strength to be 65% of tensile strength.
- If you send us the specification (Tensile strength and diameter of Bar) we shall recommend the right cutter for your application.

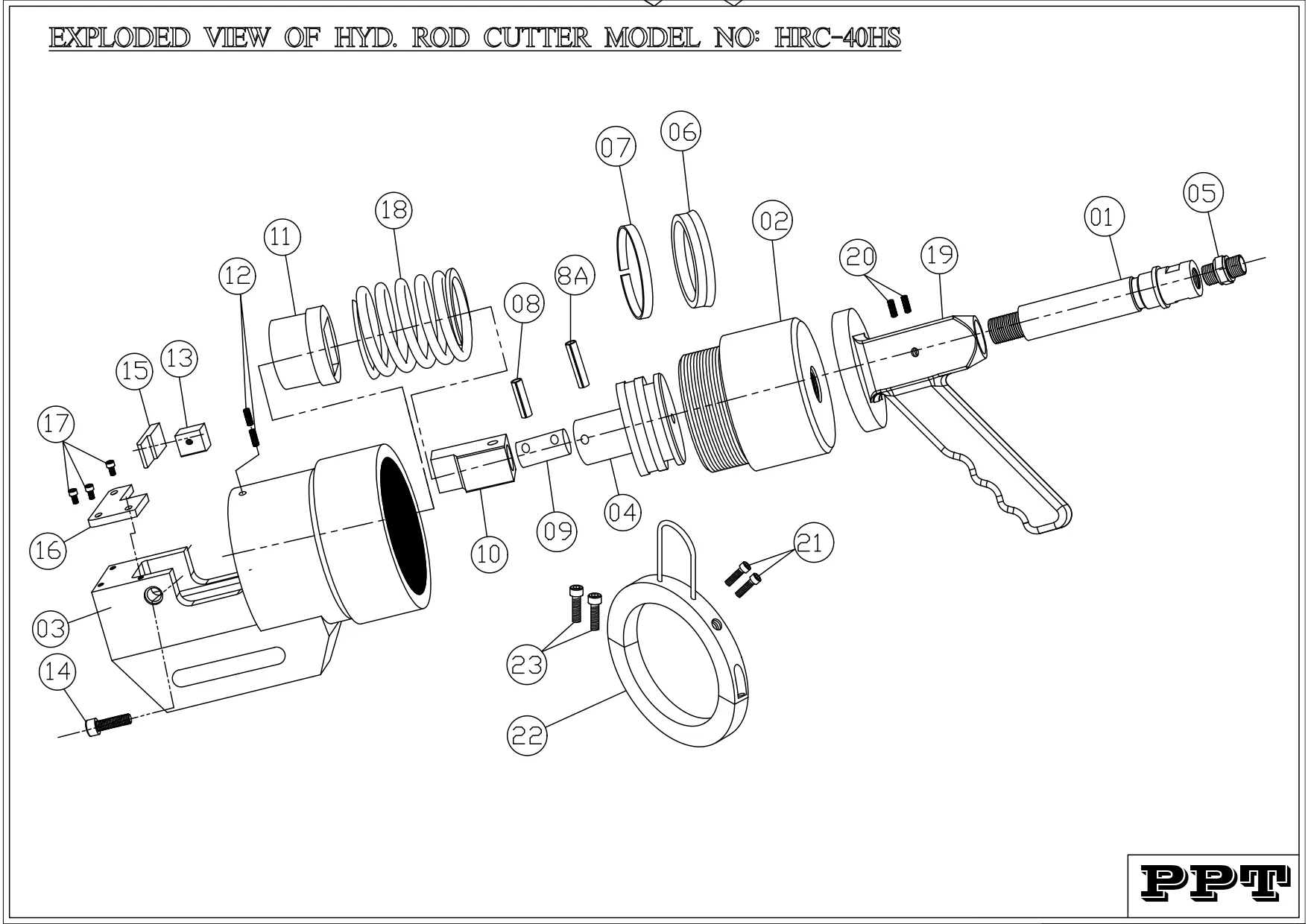

| Index | Part Number | Part Name | Qty. |
|---|---|---|---|
| 1 | HRCWC0001F | LONG NIPPLE | 1 |
| 2 | HRC40HS02F | CYLINDER | 1 |
| 3 | HRC40HS03F | ROD CUTTER BODY | 1 |
| 4 | HRC40HS04F | PISTON | 1 |
| 5 | HRCWC0002F | BOLT FOR PISTON | 1 |
| 6 | HRC40HS06B | U-CUP SEAL | 1 |
| 7 | HRC40HS07B | BEARING SEAT | 1 |
| 8 | HRC40HS08B | C-PIN-1 | 1 |
| 8A | HRC40HS8AB | C-PIN-2 | 1 |
| 9 | HRCWC0009F | CONNECTOR | 1 |
| 10 | HRC40HS10F | MOVING BLADE | 1 |
| 11 | HRC40HS11F | BUSH | 1 |
| 12 | HRC40HS12B | GRUB SCREW | 2 |
| 13 | HRC40HS13F | FIXED BLADE | 1 |
| 14 | HRC40HS14B | BOLT FOR FIXED BLADE | 1 |
| 15 | HRC40HS15F | FIXED BLADE SUPPORT | 1 |
| 16 | HRC40HS16F | UPPER COVER FOR FIXED BLADE | 1 |
| 17 | HRC40HS17B | BOLTS FOR UPPER COVER | 3 |
| 18 | HRC40HS18B | SPRING | 1 |
| 19 | HRC40HS19F | HANDLE | 1 |
| 20 | HRC40HS20B | GRUB SCREW FOR HANDLE | 2 |
| 21 | HRC40HS21B | BOLT FOR HANGING RING LOCATING | 2 |
| 22 | HRC40HS22F | HANGING RING | 1 |
| 23 | HRC40HS23B | BOLT FOR HANGING RING | 2 |
OPERATIONAL MANUAL:
- Connect the control panel with the power supply.
- Turn on the MCB located on the control panel.
- Make sure the Red, Blue and Yellow Lights are turned on / Glowing.
- Switch on the Motor and the Solenoid in Control Panel.
- Place the Rod Securely between the Moving and Fixed Blade and make sure the Rod is aligning with the Cutting edge of the Blades and Ensure that the Full Diameter of rod is within the height of the Blades.
- Operate the Hand / Foot Switch to cut the Rod Completely and wait for the retraction of the Moving Blade. After retraction the machine is ready for the next cut.
MAINTENANCE:
DAILY INSPECTION:
- Perform a daily visual inspection for any signs of wear, damage, or leaks.
- Examine hydraulic hoses and connections for any wear or damage.
- Check and tighten all bolts and fasteners.
- Lubricate all moving parts before operating the machine.
- Clean travel area of the Moving Blade.
WEEKLY INSPECTION:
- Inspect for any hydraulic fluid leaks.
- Clean the machine to prevent dust and debris build-up.
MONTHLY INSPECTION:
- Inspect critical components for signs of wear and replace if necessary.
- Maintain a log of all maintenance activities.
- Check the Oil Levels.
QUARTERLY INSPECTION:
- Conduct a thorough inspection of the entire system.
- Replace any worn-out components.
- Clean the Strainers fitted with the Pump.
ANNUAL INSPECTION:
- Perform a comprehensive overhaul of the system.
- Schedule a professional inspection and servicing.
SAFETY INSTRUCTIONS:
- Before using the Machine, read the operating instructions carefully.
- Must Operate by a Trained Personnel equipped with appropriate Personal Protective Equipment (PPE).
- This Model is Suitable for certain Size of Rod and Tensile Strength. Do not ever try to cut Oversize Rod and Greater Tensile Strength.
- Ensure the work piece is placed securely Between the Moving and Fixed Blade.
- While the machine is not in use, keep the Hydraulic Power Pack switched off, so that accidental pressing of Switch cannot cause any injury.
- Before the Operation make sure to keep hands and body clear of the Blades.
- See that nobody is standing on the other end of the rod, because depending on the tensile strength of the material and flow rate of the power pack, the parted portion of the rod may shoot out at high speed causing injury.
- Check that the Balancer and Hanging arrangement is strong enough to hold the combined weight of the cutter and the job.
- During the Operation don’t open the Control panel.
- Don’t let any untrained personnel open the control panel.
- During the Operation Don’t let any Untrained and Unauthorized personnel near the machine.
- Clean the area around the equipment to prevent any hazard.
