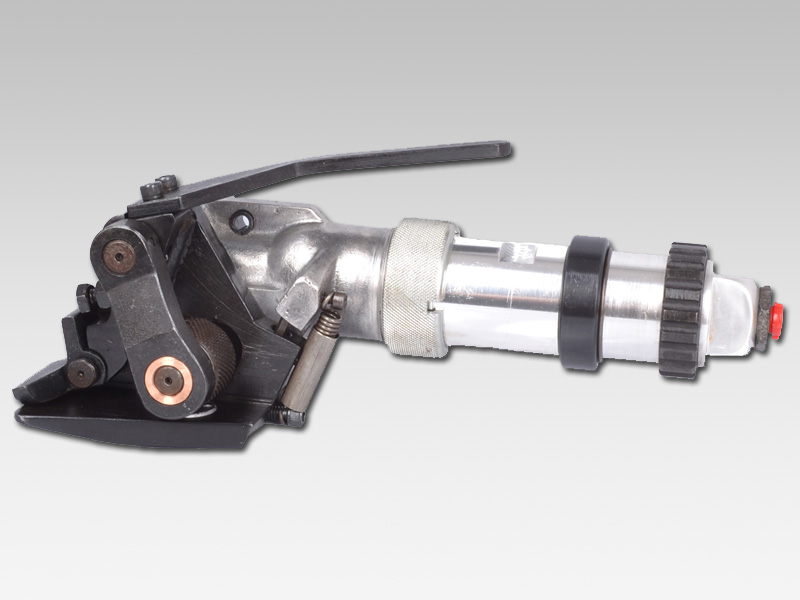

MODEL NO.: T-177E
- Pneumatic Pusher type Tensioner.
- Strap thickness – Up to 0.89mm/0.035”
- Strap width – 19.05- 31.75mm / 3⁄4"
– 11/4”
- Grade – High Tensile.
- Operating Air pressure – 5.5 – 6.0
kg/cm2
- Tension Achievable – 725 kg/1600 lb at 6kg/cm2 (84 psi)
|
|
|
|
|
| |
|
|
|

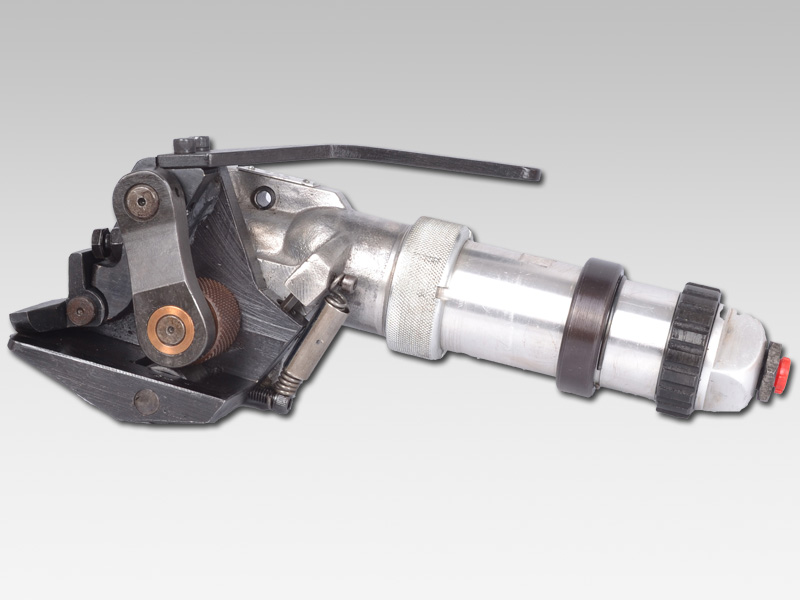

MODEL NO.:
T-177R
- Pneumatic Pusher type Tensioner.
- Roller frame fitted with Roller instead of Pressure Pad.
- Strap thickness – Up to 0.89mm/0.035”
- Strap width – 19.05 - 31.75 mm/ 3⁄4" –
11⁄4”
- Grade – Same as T177 E and also can be used with Dry strap
- Operating Air pressure – 5.5 – 6.0
kg./cm2.
- Tension Achievable – 725 kg/1600 lb at
6kg/cm2 (84 psi)
|
|
|
|
|
| |
|
|
|

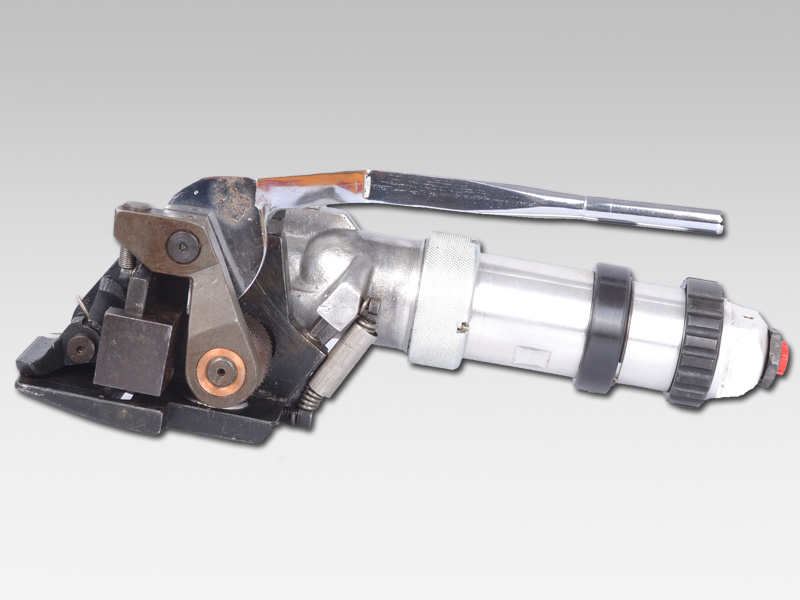

MODEL NO.:
T-177C
- Pneumatic Pusher type Tensioner.
- Extra shearing attachment for cutting the strap.
- Strap thickness – Up to 0.89mm/0.035”
- Strap width – 19.05- 31.75mm/ 3⁄4"– 11/4”
- Grade – Same as T177 E and also can be used with M.S or Local strap
- Operating Air pressure – 5.5 – 6.0
kg/cm2
- Tension Achievable – 725 kg/1600 lb at
6kg/cm2 (84 psi)
|
|
|
|
|
| |
|
|
|
MODEL NO.:
T-177L
- Pneumatic Pusher type Tensioner.
- Designed for (4 to 4.5 kg/cm2) low pressure application
- Strap thickness – Up to 0.89 mm/0.035”
- Strap width – 19.05 - 31.75 mm/ 3⁄4"– 11/4”
- Grade – High Tensile.
- Operating Air pressure – 4.0 – 4.5 kg
/cm2.
- Tension Achievable – 4.5 kg /cm2 – 725 kg/1600lb
6 kg/cm2 – 860 kg/1900lb
|
|
|
|
|
| |
|
N.B:- Modular design for easy maintenance.
|
|
| |
