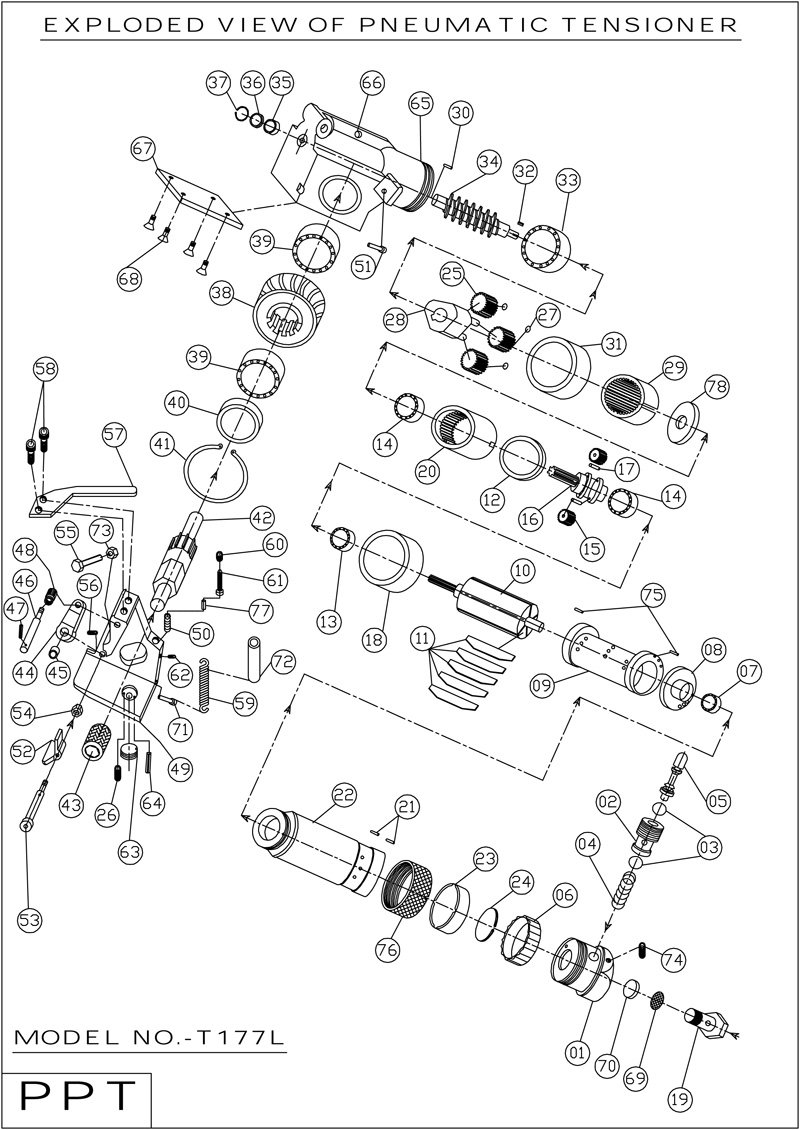

MODELNO.: T-177L


PART LIST OF T-177L
PART INDEX  DESCRIPTION QTY
1 BACK HEAD 1
2 * VALVE POPPET 1
3 * VALVE `O` RING 2
4 VALVE SPRING 1
5 VALVE BODY 1
6 CONTROL RING 1
7 # BEARING NO- 1 1
8 END PLATE-1 1
9 AIR CYLINDER 1
10 # ROTER(& 40 DP SUN PINION) 1
11 # ROTER VANES 5
12 RETAINER RING (FOR 40 DP PLANET PINS) 1
13 # BEARING NO- 2 1
14 # BEARING NO-3 2
15 # 40 DP PLANET PINIONS (WITH BUSH) 2
16 # 40 DP PLANET HOLDER(& 1M SUN PINION) 1
17 # PINS FOR 40 DP PLANETS 2
18 END PLATE-2 1
19 AIR INLET NIPPLE ADAPTOR 1
20 # 40 DP INTERNAL GEAR 1
21 LOCKING PIN (FOR 40 DP INTERNAL GEAR) 2
22 BODY (FOR MOTOR & 40 DP GEARING) 1
23 SILENCER (FOR AIR EXHAUST) 1
24 WIRE LOCK(FOR SILENCER) 1
25 # 1 MODULE PLANET PINIONS 3
26 # PRESSURE PAD ADJUSTING SCREW 1
27 WIRE LOCK(FOR 1 MODULE PLANETS) 3
28 # PLANET HOLDER(FOR 1 M PLANETS) 1
29 1 MODULE INTERNAL GEAR 1
30 LOCKING PINS (FOR 1 M INTERNAL GEAR) 2
31 SPACER (FOR BEARING NO- 4) 1
32 KEY BAR (FOR WORM SHAFT) 1
33 BEARING NO-4 1
34 WORM SHAFT 1
35 BEARING NO-5 1
36 BEARING COVER-1(FOR BEARING NO-5) 1
37 CIRCLIP (FOR BEARING COVER -1) 1
38 # WORM WHEEL 1
39 BEARING NO-6 2
40 BEARING COVER-1(FOR BEARING NO-6) 1
41 CIRCLIP (FOR BEARING COVER -2) 1
42 SPINDLE (FOR FEED & WORM WHEEL) 1
43 * FEED WHEEL 1
44 LINK ARM 1
45 OLITE BUSH (FOR LINK ARM) 1
46 SPINDLE (FOR LINK ARM) 1
47 `C` PIN (FOR SPINDLE LOCKING) 1
48 ROUND NUT(FOR SPINDLE) 1
49 ROLLER FRAME 1
50 # SPRING(FOR ADJUSTING PIN) 1
51 ANCHOR SCREW-1 FOR TENSION SPRING 1
52 # STRAP GUIDE 1
53 SPINDLE(FOR STRAP GUIDE) 1
54 NUT(FOR STRAP GUIDE SPINDLE) 1
55 # STRAP GUIDE ADJUSTING BOLT 1
56 GRUB SCREW (FOR STRAP GUIDE SPINDLE) 1
57 HANDLE (FOR ROLLER FRAME) 1
58 SCREWS(FOR HANDLE) 2
59 # TENSION SPRING (FEED WHEEL GRIP) 1
60 HEXAGONAL ADJUSTING PIN 1
61 ADJUSTING NUT(FOR HEX. ADJ. PIN) 1
62 GRUB SCREW (FOR ADJUSTING NUT) 1
63 * PRESSURE PAD 1
64 `C` PIN (FOR PRESSURE PAD LOCKING) 1
65 HOUSING (FOR WORM & WHEEL) 1
66 `C` PIN (FOR HANGING FROM BALANCER) 1
67 BOTTOM COVER(FOR HOUSING) 1
68 # SCREWS(FOR BOTTOM COVER) 4
69 AIR FILTER(FOR BACK HEAD) 1
70 DUST CAP(FOR BACK HEAD) 1
71 ANCHOR PIN FOR TENSION SPRING 1
72 SPRING COVER 1
73 # STRAP GUIDE ADJUSTING NUT 1
74 GRUB SCREW (FOR ADAPTOR LOCKING) 1
75 PIN(FOR END PLATE LOCKING) 2
76 LOCKING CAP 1
77 STOPPER PIN 1
78 COVER PLATE 1
> * FREQUENT WEAR & TEAR
# CONSUMABLE
