| HYDRAULIC
UPSET |
|
|
|
|

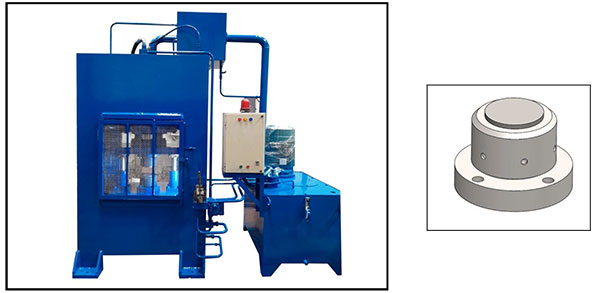

HYDRAULIC
UPSET PRESS MACHINE
MODEL NO.:
- Load: 400Ton /500Ton / 600Ton
- Material Tensile Strength: Up to 800MPa UTS. (Max.)
- Maximum Pressing Capacity: Up to Ø25.0/Ø36.0/Ø40.0mm
- First and Free Approach Speed: 15 to 20 mm/sec.
|
|
|
|
|
|
|
| |
|
|
|

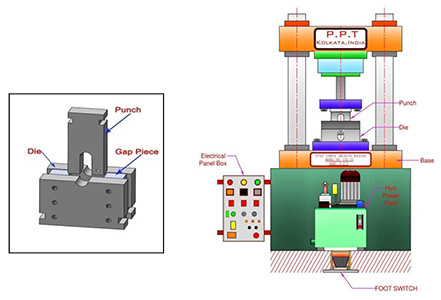

HYDRAULIC
UPSET SHEARING MACHINE
MODEL NO.:
USC-36
- Maximum shear capacity: Ø5.0mm to Ø25.0/Ø36.0mm.
- Material Tensile Strength: Up to 800MPa UTS. (Max.)
- Maximum operating pressure: 315bar
- Pump: Radial piston pump.
|
|
|
|
|
| |
|
|
|

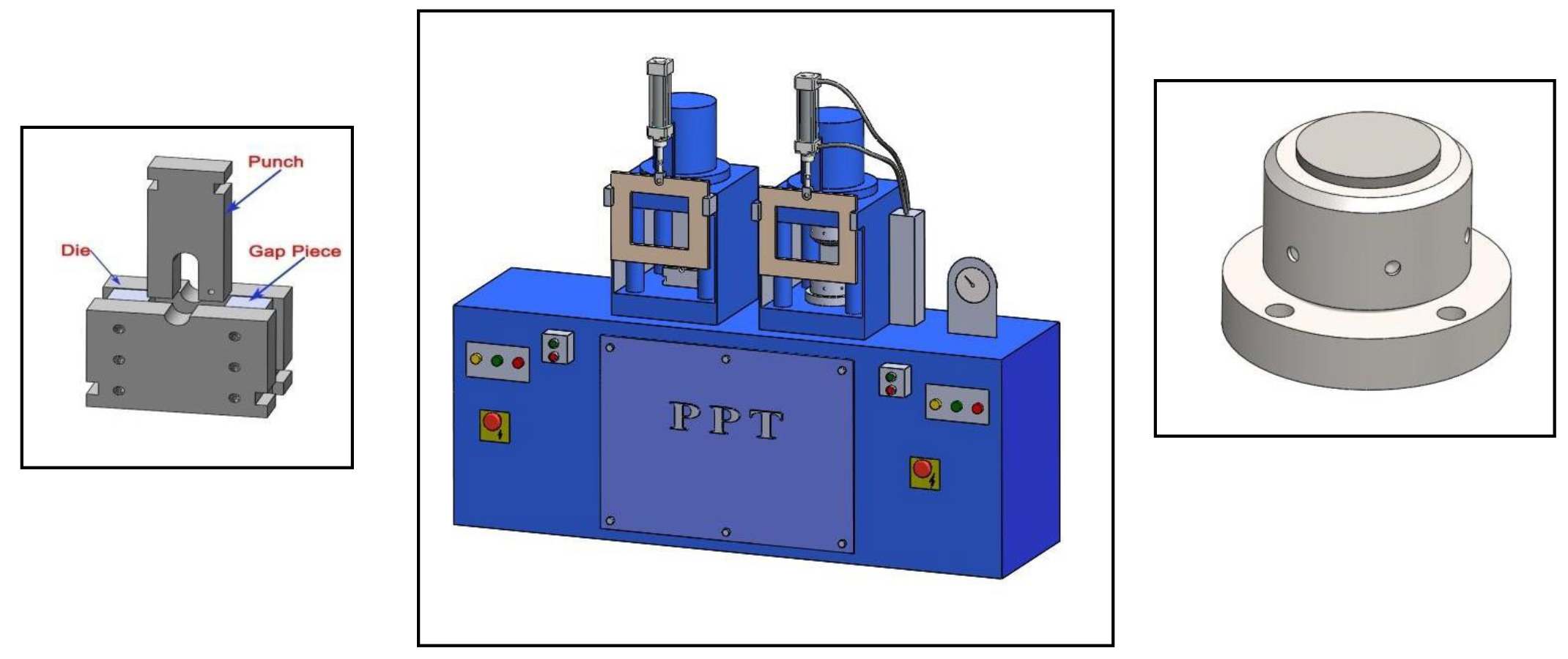

HYDRAULIC
UPSETING SHEARING & PRESS
MODEL NO.:
PHUSP-25
- Maximum shear capacity: Ø5.0mm
to Ø25.0mm
- Material Grade: Up to 800 MPa
UTS. (Max.)
- Maximum operating pressure: 315bar
- Pump: Radial piston pump.
|
|
|
|
|
|
|
|
|
|
