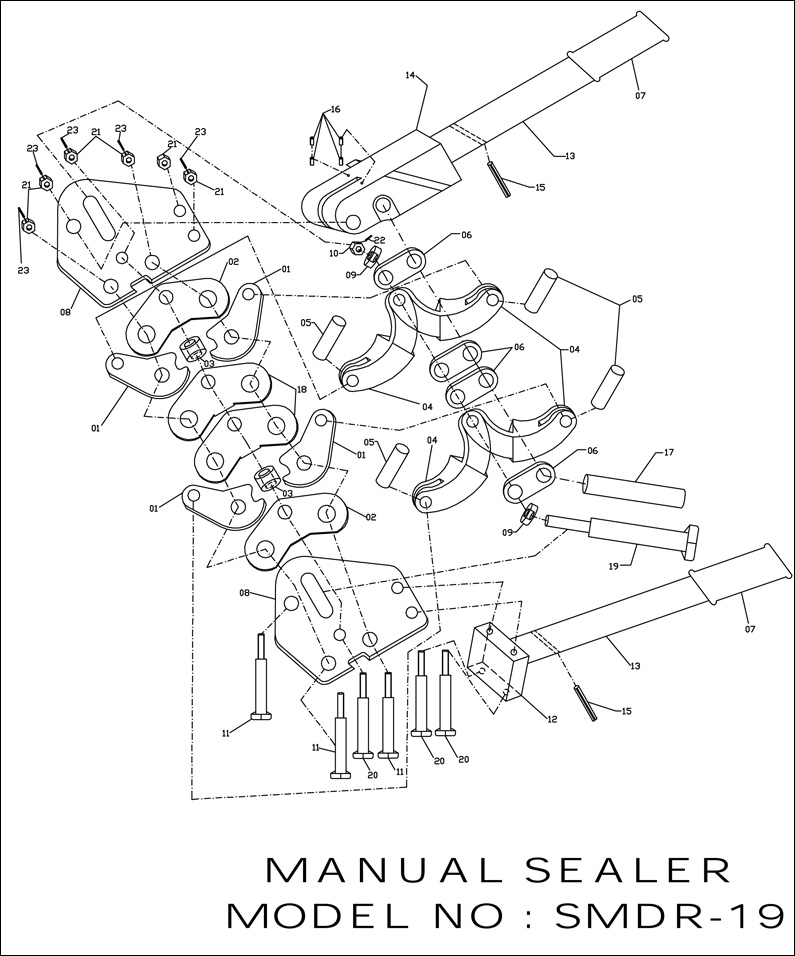

MODEL NO.: SMDR – 19


PART LIST OF SMDR – 19

INDEX

PART NAME

QUANTITY

01

JAW

4

02

NOTCHER PLATE (TYPE-A)

2

03

SPACER FOR NOTCHER & SIDE PLATES

2

04

LINK BARS

4

05

LINK BAR PIN

4

06

LINK PLATE

4

07

HANDLE GRIP

2

08

SIDE PLATE

2

09

SLIDER WASHER

2

10

NUT (M6) FOR SLIDER PIN

2

11

JAW & UPPER HANDLE BOLT

3

12

LOWER HANDLE HEAD

1

13

PIPES FOR UPPER & LOWER HANDLE HEADS

2

14

UPPER HANDLE HEAD

1

15

Ǿ 4 ‘C’ PIN X 28 mm LONG

1

16

GRUB SCREWS FOR UPPER HANDLE HEAD

2

17

PIN FOR UPPER HANDLE HEAD

1

18

NOTCHER PLATE (TYPE-B)

2

19

SLIDER PIN

1

20

BOLTS FOR LOWER HANDLE HEAD AND NOTCHER

3

21

NYLOCK NUTS M-8 SIZE

6

22

SPIT PINS Ǿ2 X 20 mm LONG

2
