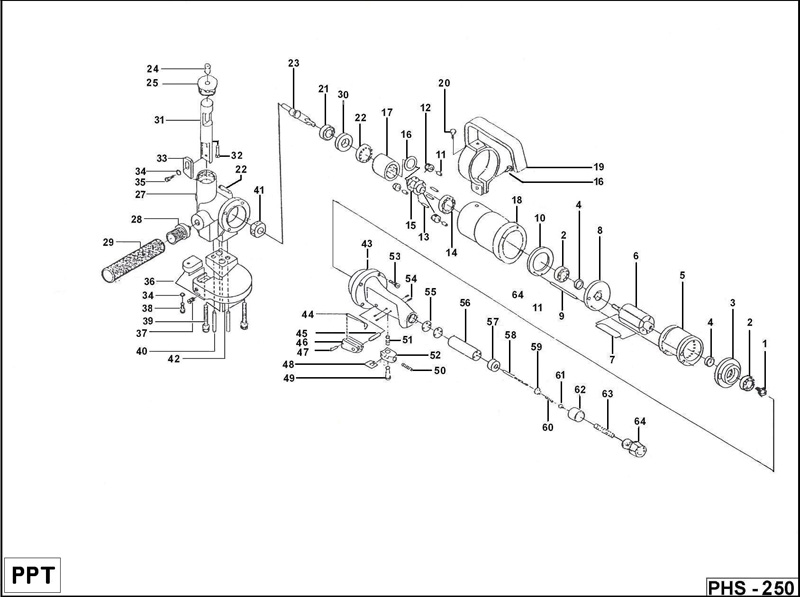

INDEX

PART NAME

QTY.

01

Rotor Screw

1

02

Bearing(6002)

2

03

End Plate No. 1

1

04

Gap Piece

2

05

Cylinder

1

06

Rotor

1

07

Rotor Blade

5

08

End Plate No. 2

1

09

Cylinder Pin

1

10

Ring

1

11

Idle Gear Bush

3

12

Idle Gear

3

13

Idle Gear Pin

3

14

Bearing (EE-5)

2

15

Gear Box

1

16

Screw(Top Handle)

1

17

Internal Gear

1

18

Body

1

19

Top Handle

1

20

Hex Bolt

2

21

Bearing(1202)

1

22

S.H.C. Screw

4

23

Crank Shaft

1

24

Oil Nipple

1

25

Cap

1

26

Oil Seal(35 x 15 x 7)

1

27

Cam Housing

1

28

Handle Socket

1

29

Front Handle

1

30

Ring

1

31

Ram

1

32

Adjusting Bolt

1

33

Moving Cutter Blade

1

34

Spring Washer

2

35

S.H.C. Screw

1

36

Fixed Cutter Blade

1

37

S.S. Screw

1

38

S.H.C. Screw

1

39

S.H.C. Screw

4

40

S.H.C. Screw

2

41

Cam Bush

1

42

Horse Shoe

1

43

Rear Handle

1

44

Lever

1

45

Trigger Pin

1

46

Trigger

1

47

Lever Pin

1

48

Lock Plate

1

50

Spring

1

51

Spring

1

52

Pawl Block

1

53

S.H.C. Screw

4

54

Set Screw

4

55

Gasket

2

56

Valve Bush

1

57

Valve Body

1

58

Valve Pin

1

59

Valve Cap

1

60

Spring

1

61

Valve Pin Nut

1

62

Spacer

1

63

Spring

1

64

Adapter

1
