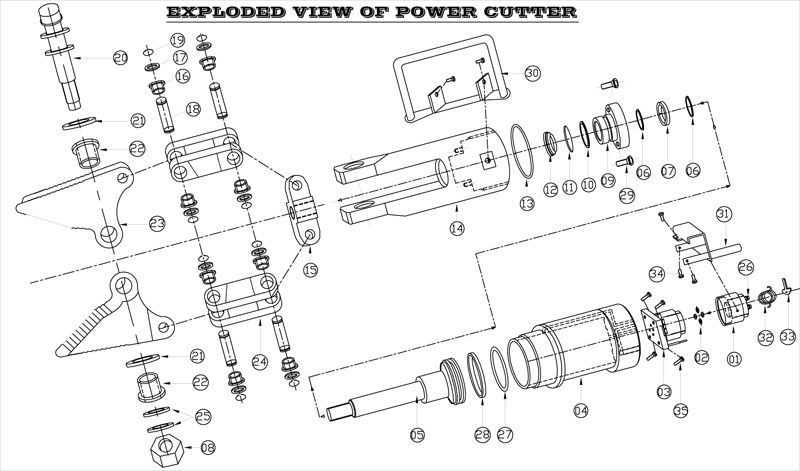

| INDEX
NO. |
PARTS
NAME |
QTY. |
| 1 |
VALVE
TOP |
1 |
| 2 |
O-RING
FOR VALVE |
4 |
| 3 |
VALVE
BASE |
1 |
| 4 |
CYLINDER
BODY |
1 |
| 5 |
PISTON |
1 |
| 6 |
BACK
UP RING FOR SQUARE RING |
2 |
| 7 |
SQUARE
RING |
1 |
| 8 |
M-18
NUT |
1 |
| 9 |
BUSH
FOR PISTON |
1 |
| 10 |
BACK
UP RING-2 |
1 |
| 11 |
O-RING
FOR BUSH |
1 |
| 12 |
WIPER |
1 |
| 13 |
O-RING
FOR CYLINDER TOP |
1 |
| 14 |
CYLINDER
TOP |
1 |
| 15 |
CONNECTING
BLOCK |
1 |
| 16 |
BUSH
FOR LINK |
8 |
| 17 |
WASHER
FOR LINK |
8 |
| 18 |
PIN
FOR LINK |
4 |
| 19 |
CIRCLIP |
8 |
| 20 |
BOLT
FOR JAW AND CYL. TOP |
1 |
| 21 |
SPRING
WASHER |
2 |
| 22 |
BUSH
FOR CYL. TOP AND JAW |
2 |
| 23 |
JAW |
2 |
| 24 |
LINK |
2 |
| 25 |
WASHER
FOR JAW |
4 |
| 26 |
HYD.
HOSE NIPPLE |
2 |
| 27 |
O
RING FOR PISTON |
1 |
| 28 |
COVERED
RING FOR O RING |
1 |
| 29 |
C.S.K
BOLT FOR BUSH |
2 |
| 30 |
FRONT
HANDLE |
1 |
| 31 |
BACK
HANDLE |
1 |
| 32 |
SPRING
FOR VALVE |
1 |
| 33 |
LEVER
FOR VALVE |
1 |
| 34 |
BOLT
FOR LOCKING HANDLES |
5 |
| 35 |
BOLT
FOR FIXING VALVE WITH CYL. |
4 |
